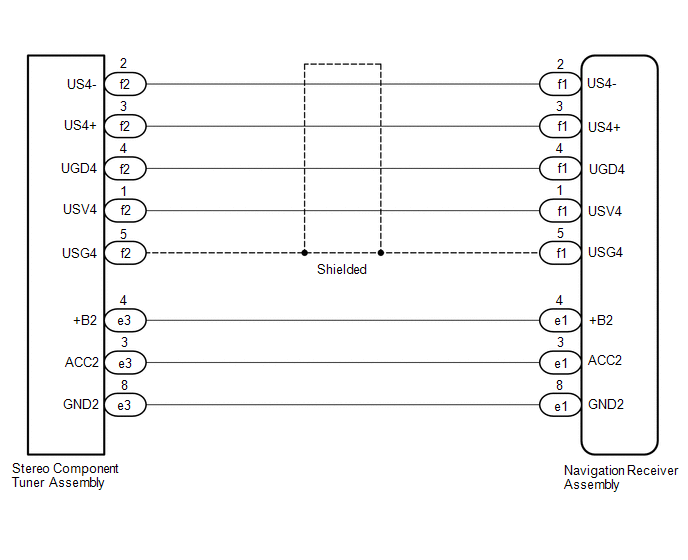

DTC B156C: Extension Module Disconnected [08/2015 - 08/2019]: Wiring Diagram

GTY927466

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
