Display does not Dim when Light Control Switch is Turned ON [08/2015 - 08/2019]: Procedure

1. Display the "Display" screen.
2. Turn the light control switch to the tail or head position.
3. Check if "Day Mode" on the display adjustment screen is on.

   OK

   "Day Mode" setting is off

Result:

NG

TURN "Day Mode" SETTING OFF

Result:

OK

See step  2

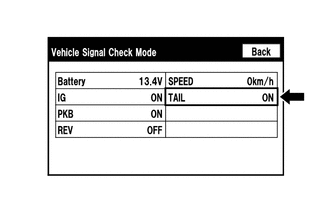

1. Enter the "Vehicle Signal Check Mode" screen. [Refer to Check Vehicle Signal in Operation Check (Refer to OPERATION CHECK [08/2015 - 08/2017] , or refer to OPERATION CHECK [08/2017 - 08/2019] )]

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Check that the display for "TAIL" changes between ON and OFF according to the light control switch operation.

   OK

   Light Control Switch	Display
   Tail or head	ON
   Off	OFF

   HINT:

   This display is updated once per second. As a result, it is normal for the display to lag behind the actual switch operation.

Result:

OK

REPLACE NAVIGATION RECEIVER ASSEMBLY

(Refer to REMOVAL [08/2015 - 08/2019] )

Result:

NG

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

(Refer to PROBLEM SYMPTOMS TABLE [08/2015 - 08/2017] , or refer to PROBLEM SYMPTOMS TABLE [08/2017 - 08/2019] )
