DTC B2221: Jam Protection Pulse Sensor Circuit on Back Door [08/2019 - ]: Procedure
- PERFORM INITIALIZATION (BACK DOOR POWER WINDOW REGULATOR MOTOR ASSEMBLY)
- Initialize the back door power window regulator motor assembly (Refer to INITIALIZATION [08/2019 - ] ).
Result:
NEXT
See step 2
- CHECK DTC
- Clear the DTC (Refer to DTC CHECK / CLEAR [08/2019 - ] ).
- Check for DTC (Refer to DTC CHECK / CLEAR [08/2019 - ]
).
OK
DTC is not output.
Result:
OK
END
Result:
NG
See step 3
- CHECK HARNESS AND CONNECTOR (BACK DOOR ECU - BACK DOOR POWER WINDOW REGULATOR MOTOR ASSEMBLY)
- Disconnect the V3 back door ECU connector.

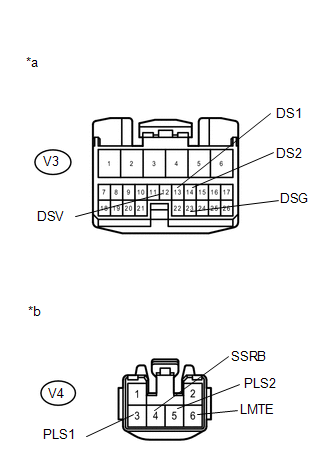

*a Front view of wire harness connector (to Back Door ECU) *b Front view of wire harness connector (to Back Door Power Window Regulator Motor Assembly) - Disconnect the V4 back door power window regulator motor assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition V3-12 (DSV) - V4-4 (SSRB) Always Below 1 Ω V3-13 (DS1) - V4-3 (PLS1) Always Below 1 Ω V3-14 (DS2) - V4-5 (PLS2) Always Below 1 Ω V3-23 (DSG) - V4-6 (LMTE) Always Below 1 Ω V3-12 (DSV) - Body ground Always 10 kΩ or higher V3-13 (DS1) - Body ground Always 10 kΩ or higher V3-14 (DS2) - Body ground Always 10 kΩ or higher V3-23 (DSG) - Body ground Always 10 kΩ or higher - Reconnect the back door power window regulator motor assembly connector.
- Reconnect the back door ECU connector.
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 4
- Disconnect the V3 back door ECU connector.
- REPLACE BACK DOOR POWER WINDOW REGULATOR MOTOR ASSEMBLY
- Replace back door power window regulator motor assembly (Refer to DISASSEMBLY [08/2019 - ] ).
Result:
NEXT
See step 5
- CHECK DTC
- Clear the DTC (Refer to DTC CHECK / CLEAR [08/2019 - ] ).
- Check for DTC (Refer to DTC CHECK / CLEAR [08/2019 - ]
).
OK
DTC is not output.
Result:
OK
END
Result:
NG
REPLACE BACK DOOR ECU
(Refer to DISASSEMBLY [08/2019 - ] )
