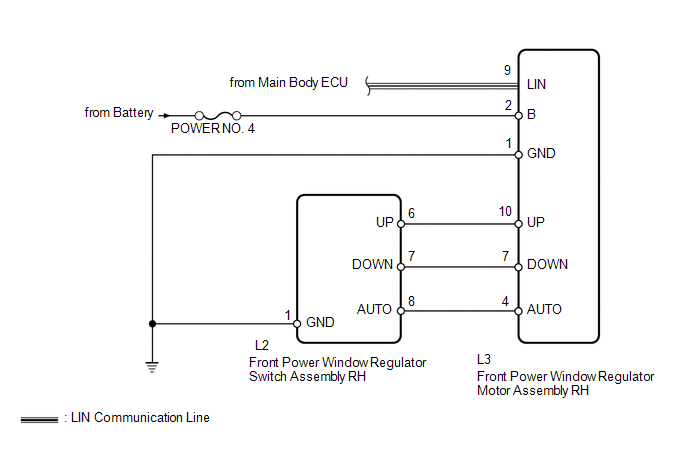

Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch [08/2015 - 08/2017]: Wiring Diagram

GTY611263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
