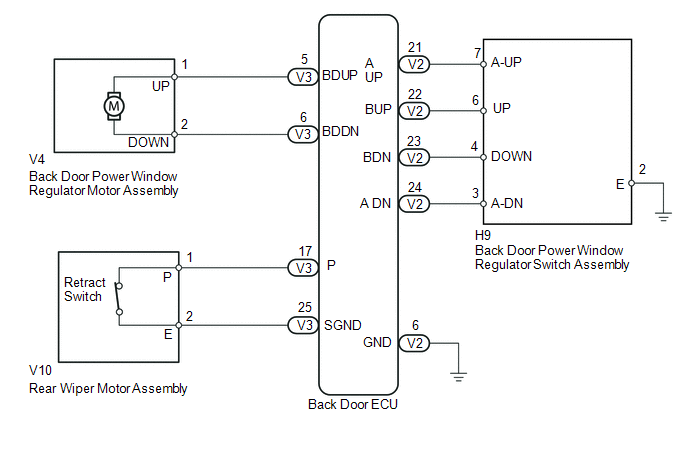

Manual Up / Down Function does not Operate on Back Door Only [08/2015 - 08/2019]: Wiring Diagram

GTY576195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
