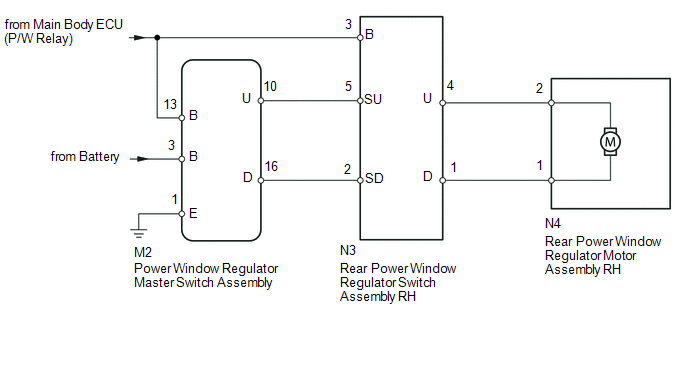

Rear Power Window RH does not Operate with Rear Power Window Switch RH [08/2015 - 08/2017]: Wiring Diagram

GTY366011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
