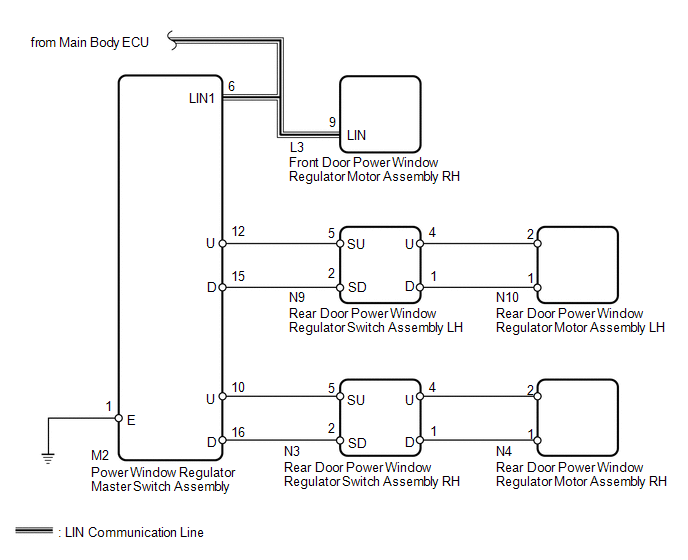

Remote Up / Down Function does not Operate [08/2015 - 08/2019]: Wiring Diagram

GTY226277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
