Drive Start Control System [08/2017 - 08/2018]: Description

  1. The drive start control is controlled by the ECM.

    If the ECM determines that the shift lever and accelerator pedal are operated abnormally, driving torque is restricted and, when necessary, a warning is displayed on the combination meter assembly.

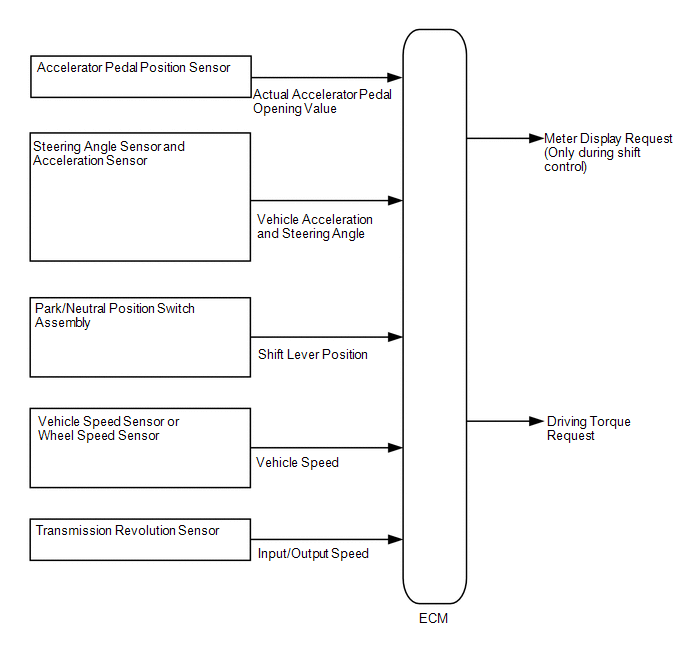

    Fig 1: Drive Start Control System
    GTY766825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
