DTC B1790: Center Airbag Sensor Assembly Communication Circuit Malfunction [08/2017 - 08/2019]: Wiring Diagram

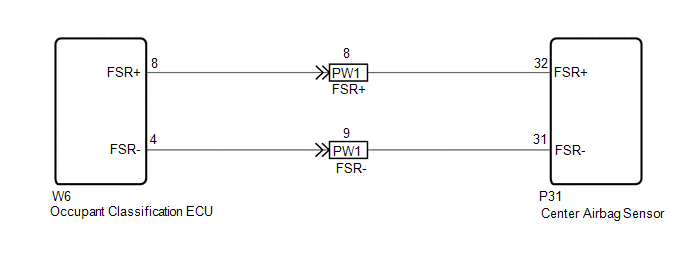

w/ Power Seat:

GTY745667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

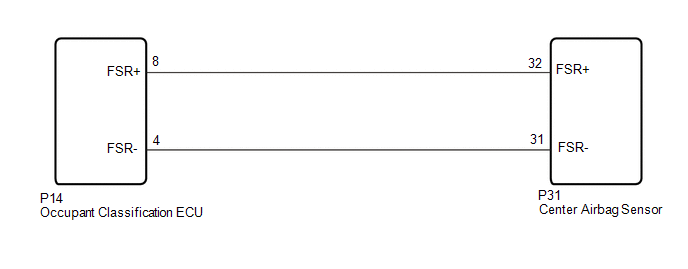

w/o Power Seat:

GTY749719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
