DTC B1793: Occupant Classification Sensor Power Supply Circuit Malfunction [08/2019 - ]: Procedure

1. Turn the engine switch on (IG), and wait for at least 60 seconds.
2. Clear any DTCs stored in the memory (Refer to DTC CHECK / CLEAR [08/2019 - ] ).

   HINT:

   • First clear DTCs stored in the occupant classification ECU and then in the center airbag sensor.
   • Use the Techstream to clear the DTCs of the occupant classification ECU, otherwise the DTCs cannot be cleared.
3. Turn the engine switch off.
4. Turn the engine switch on (IG), and wait for at least 60 seconds.
5. Using the Techstream, check for DTCs of the occupant classification ECU (Refer to DTC CHECK / CLEAR [08/2019 - ] ).

   OK

   DTC B1793 is not output.

   HINT:

   DTCs other than DTC B1793 may be output at this time, but they are not related to this check.

Result:

OK

USE SIMULATION METHOD TO CHECK

(Refer to DIAGNOSIS SYSTEM [08/2019 - ] )

Result:

NG

See step  2

1. Turn the engine switch off.
2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
3. Check that the connectors are properly connected to the occupant classification ECU and the occupant detection sensors.

   OK

   Connectors are properly connected.

Result:

NG

CONNECT CONNECTORS PROPERLY

Result:

OK

See step  3

1. Check that the connectors (on the occupant classification ECU side and the occupant detection sensors side) are not damaged (Refer to ELECTRONIC CIRCUIT INSPECTION PROCEDURE [08/2019 - ] ).

   OK

   Connectors are not deformed or damaged.

Result:

NG

REPLACE FRONT SEAT WIRE RH

Result:

OK

See step  4

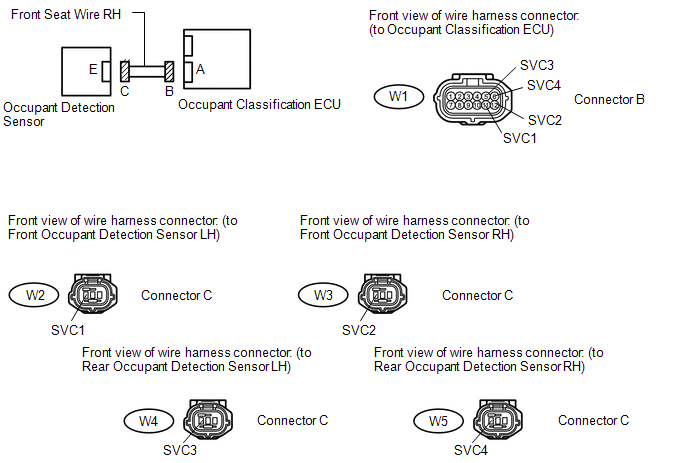

1. Disconnect the connectors from the occupant classification ECU and the 4 occupant detection sensors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
3. Turn the engine switch on (IG), and wait for at least 60 seconds.
4. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   W1-11 (SVC1) - Body ground	Engine switch on (IG)	Below 1 V
   W1-12 (SVC2) - Body ground
   W1-5 (SVC3) - Body ground
   W1-6 (SVC4) - Body ground

5. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Switch Condition	Specified Condition
   W1-11 (SVC1) - W2-1 (SVC1)	Engine switch on (IG)	Below 1 Ω
   W1-12 (SVC2) - W3-1 (SVC2)
   W1-5 (SVC3) - W4-1 (SVC3)
   W1-6 (SVC4) - W5-1 (SVC4)

6. Turn the engine switch off.
7. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
8. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   W1-11 (SVC1) - Body ground	Always	1 MΩ or higher
   W1-12 (SVC2) - Body ground
   W1-5 (SVC3) - Body ground
   W1-6 (SVC4) - Body ground
   W1-11 (SVC1) - W1-12 (SVC2)
   W1-12 (SVC2) - W1-5 (SVC3)
   W1-12 (SVC2) - W1-6 (SVC4)
   W1-11 (SVC1) - W1-5 (SVC3)

Result:

NG

REPLACE FRONT SEAT WIRE RH

Result:

OK

See step  5

1. Connect the connectors to the occupant classification ECU and the 4 occupant detection sensors.
2. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
3. Turn the engine switch on (IG), and wait for at least 60 seconds.
4. Clear any DTCs stored in the memory (Refer to DTC CHECK / CLEAR [08/2019 - ] ).

   HINT:

   • First clear DTCs stored in the occupant classification ECU and then in the center airbag sensor.
   • Use the Techstream to clear the DTCs of the occupant classification ECU, otherwise the DTCs cannot be cleared.
5. Turn the engine switch off.
6. Turn the engine switch on (IG), and wait for at least 60 seconds.
7. Using the Techstream, check for DTCs of the occupant classification ECU (Refer to DTC CHECK / CLEAR [08/2019 - ] ).

   OK

   DTC B1793 is not output.

   HINT:

   DTCs other than DTC B1793 may be output at this time, but they are not related to this check.

Result:

OK

USE SIMULATION METHOD TO CHECK

(Refer to DIAGNOSIS SYSTEM [08/2019 - ] )

Result:

NG

See step  6

1. Turn the engine switch off.
2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
3. Replace the occupant classification ECU (Refer to REMOVAL [08/2019 - ] ).

   HINT:

   Perform the inspection using parts from a normal vehicle when possible.

Result:

NEXT

See step  7

1. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
2. Connect the Techstream to the DLC3.
3. Turn the engine switch on (IG), and wait for at least 60 seconds.
4. Using the Techstream, perform the zero point calibration (Refer to INITIALIZATION [08/2019 - ] ).

Result:

NEXT

See step  8

1. Using the Techstream, perform the sensitivity check (Refer to INITIALIZATION [08/2019 - ] ).

   Standard range

   27 to 33 kg (59.5 to 72.8 lb)

Result:

NEXT

END
