IG Power Source Circuit [08/2015 - 08/2017]: Procedure

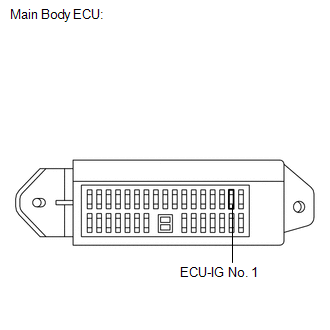

1. Remove the ECU-IG No. 1 fuse from the main body ECU.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   ECU-IG No. 1 fuse	Always	Below 1 Ω

Result:

NG

REPLACE CHECK FOR SHORTS IN ALL HARNESSES AND CONNECTORS CONNECTED TO FUSE AND REPLACE FUSE

Result:

OK

See step  2

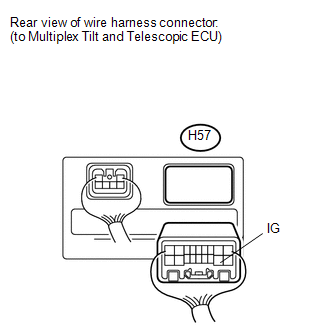

1. Disconnect the H57 multiplex tilt and telescopic ECU connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   H57-8 (IG) - Body ground	Ignition switch ON	11 to 14 V

Result:

OK

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  3

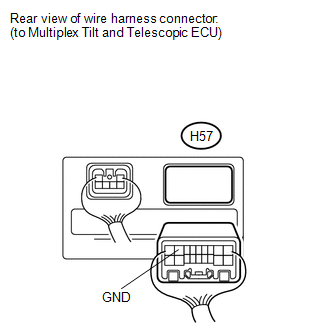

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H57-11 (GND) - Body ground	Always	Below 1 Ω

Result:

OK

PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

(Refer to PROBLEM SYMPTOMS TABLE [08/2015 - 08/2017] )

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
