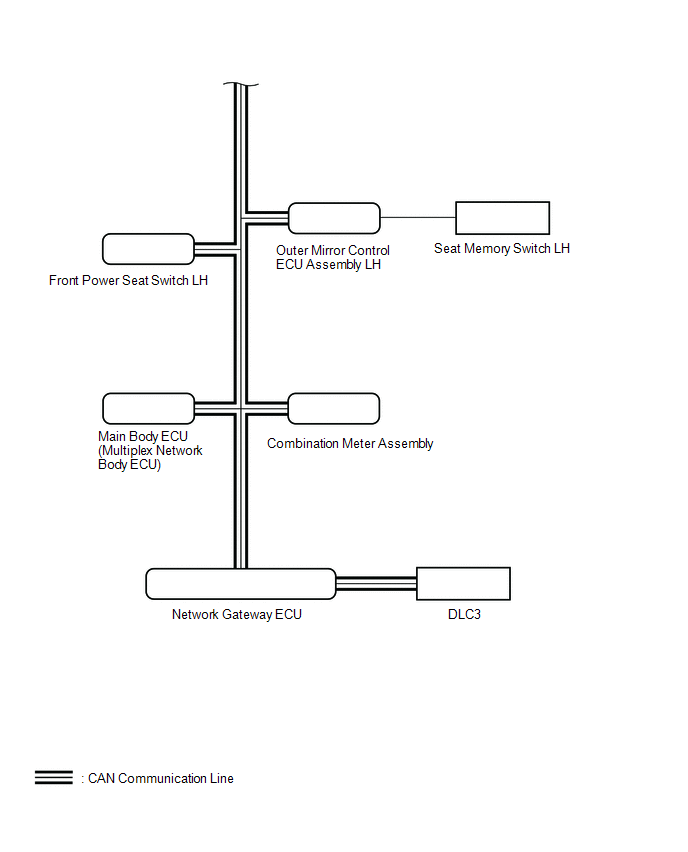

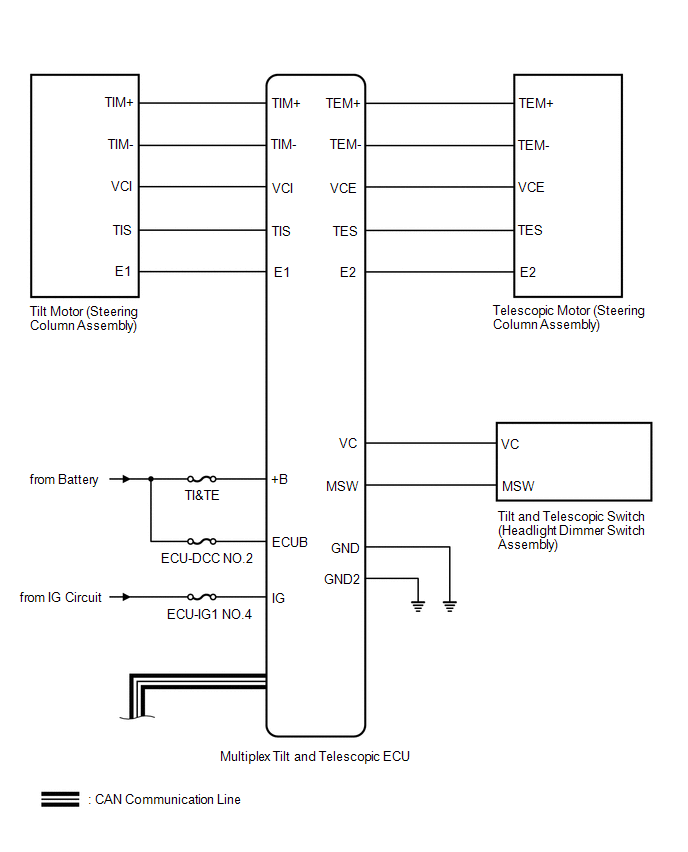

System Diagram [08/2017 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

COMMUNICATION TABLE

Transmitting ECU (Transmitter)	Receiving ECU	Signal	Communication Method
Main Body ECU (Multiplex Network Body ECU)	Multiplex Tilt and Telescopic ECU	IG SW signal Store command of driver seat memory Recall command of driver seat memory Auto away/return state signal	CAN
Front Power Seat Switch LH	Multiplex Tilt and Telescopic ECU	Memory recall signal Start signal to play tilt and telescopic steering Stop signal to play memory
Combination Meter Assembly	Multiplex Tilt and Telescopic ECU	Vehicle speed signal
Multiplex Tilt and Telescopic ECU	Main Body ECU (Multiplex Network Body ECU)	State signal of tilt and telescopic steering
Multiplex Tilt and Telescopic ECU	Front Power Seat Switch LH	Tilt and telescopic recall and execution signal Tilt and telescopic recall and end signal
Tilt and Telescopic Switch (Headlight Dimmer Switch Assembly)	Multiplex Tilt and Telescopic ECU	Tilt and Telescopic Switch signal	Direct line
