Installation [08/2015 - ]: Procedure

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

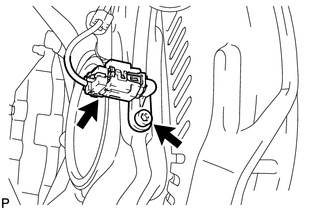

1. Using a hexagon wrench, install the front speed sensor with the bolt.

   Torque: 11 N.m (107 kgf/cm, 8 ft.lbf)

   NOTE:

   • Make sure that there are no pieces of iron or other foreign matter attached to the sensor tip part.
   • While inserting the speed sensor into the knuckle hole, do not strike or damage the sensor tip part.
   • After installing the speed sensor, make sure that there is no clearance or foreign matter between the sensor stay part and the knuckle.
   • Make sure that there is no foreign matter attached to the magnetic rotor.
2. Connect the front speed sensor connector.

for Aluminum Wheel

Torque: 131 N.m (1336 kgf/cm, 97 ft.lbf)

for Steel Wheel

Torque: 209 N.m (2131 kgf/cm, 154 ft.lbf)

1. Check the speed sensor signal. Refer to:

TEST MODE PROCEDURE [08/2015 - 08/2017] , or refer to

TEST MODE PROCEDURE [08/2017 - 08/2019] , or refer to

TEST MODE PROCEDURE [08/2019 - ]
