Installation [08/2017 - ]: Procedure

INSTALL SKID CONTROL BUZZER

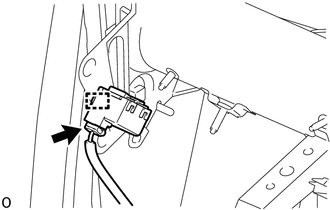

Connect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Securely connect the connector.

Attach the clamp to install the skid control buzzer.
NOTE:
- Securely insert the clamp into the bracket of the instrument panel reinforcement.
- If the buzzer is dropped, replace it.

INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 44 [08/2017 - 08/2018] , or refer to PROCEDURE - Step 45 [08/2018 - 08/2019] , or refer to PROCEDURE - Step 48 [08/2019 - ]
INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 2
INSTALL INSTRUMENT SIDE PANEL LH
Refer to PROCEDURE - Step 46 [08/2017 - 08/2018] , or refer to PROCEDURE - Step 47 [08/2018 - 08/2019] , or refer to PROCEDURE - Step 50 [08/2019 - ]
INSTALL COWL SIDE TRIM BOARD LH
Refer to PROCEDURE - Step 45 [08/2017 - 08/2019] , or refer to PROCEDURE - Step 47 [08/2019 - ]
INSTALL FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 47 [08/2017 - 08/2019] , or refer to PROCEDURE - Step 49 [08/2019 - ]
