Components [07/2020 - ]

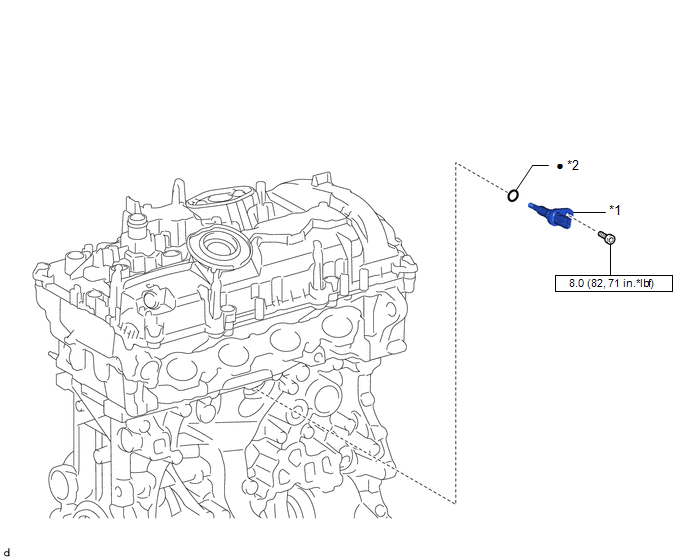

Fig 1: Engine Oil Temperature Sensor Replacement Components With Torque Specifications [07/2020 - ]
GTY995044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 OIL TEMPERATURE SENSOR *2 O-RING
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
