Components [07/2020 - ]

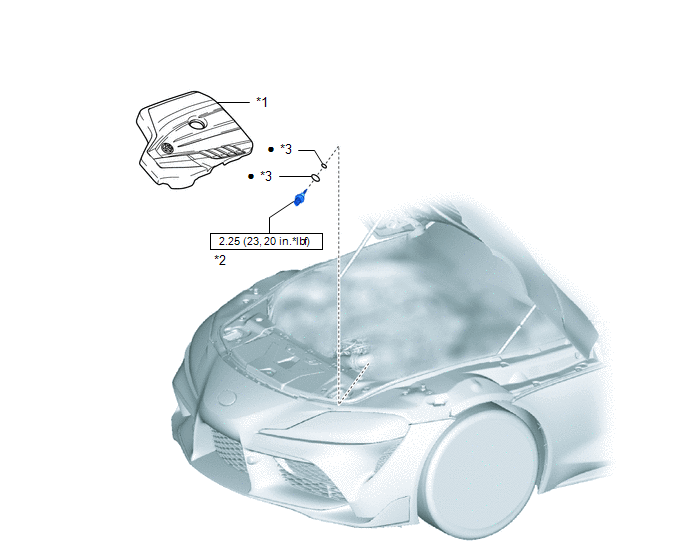

Fig 1: Intake Air Temperature Sensor Replacement Components With Torque Specifications [07/2020 - ]
GTY994939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 1 ENGINE COVER SUB-ASSEMBLY *2 INTAKE AIR TEMPERATURE SENSOR
*3 O-RING - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
