System Diagram [08/2016 - ]

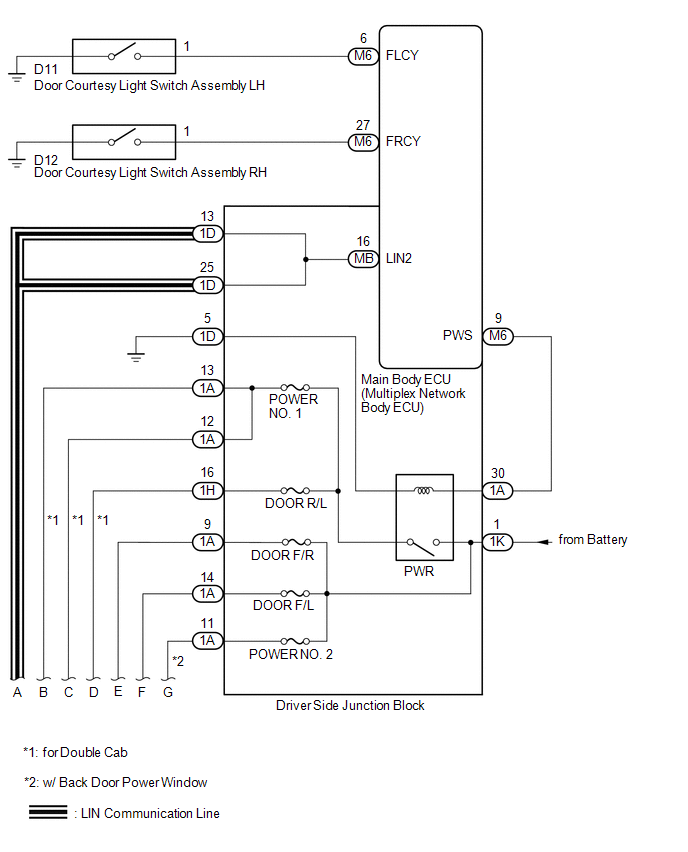

GTY761052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

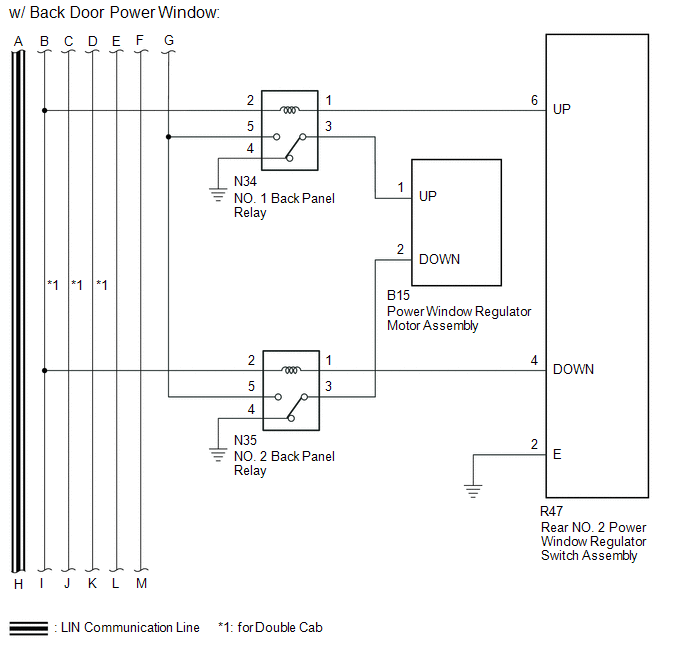

GTY766637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

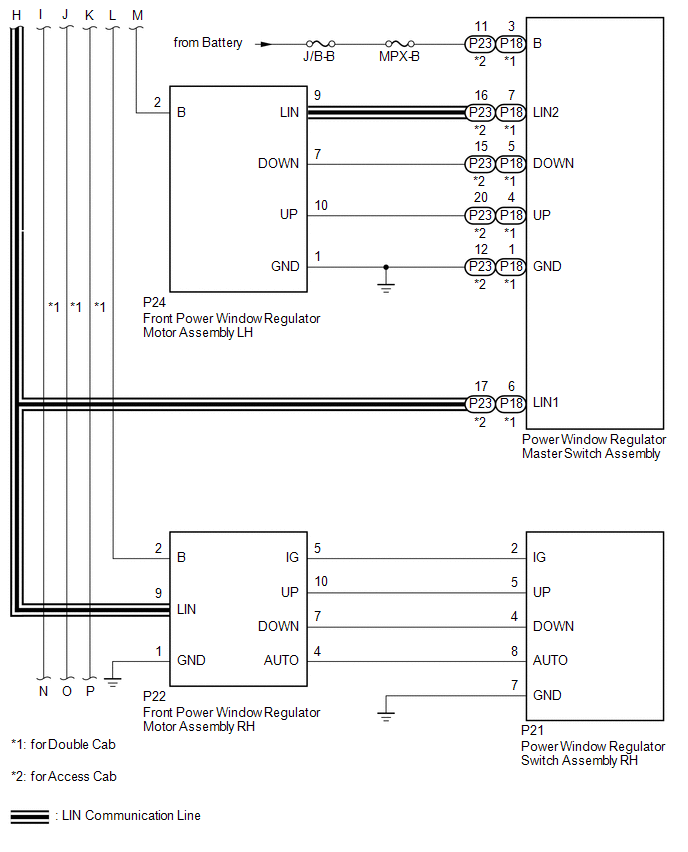

GTY714478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

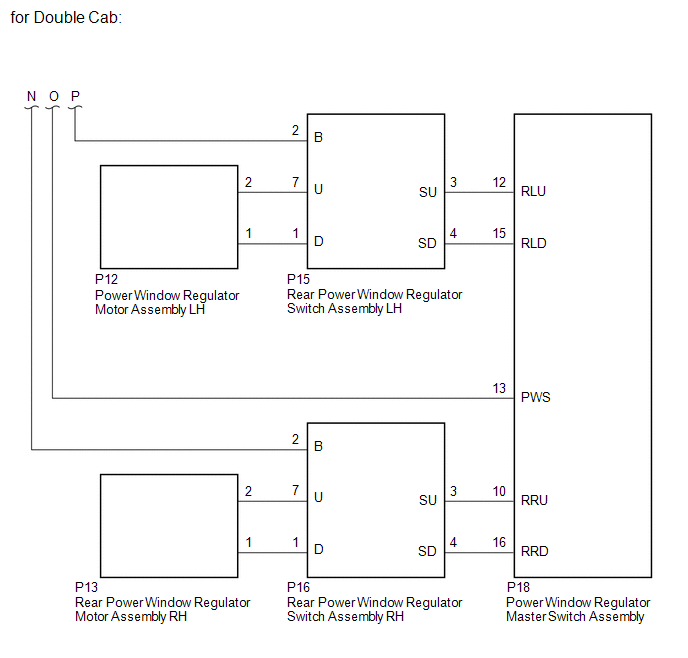

GTY738579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Transmitting ECU Receiving ECU Signal Communication Method
Power Window Regulator Master Switch Assembly Power Window Regulator Motor Assembly (for Driver Door) Power Window Regulator Motor Assembly (for Front Passenger Door) LIN
Power Window Regulator Motor Assembly (for Front Passenger Door) Power window remote up and down signal LIN
Main body ECU (multiplex network body ECU)
  • Front power window regulator motor assembly LH
  • Front power window regulator motor assembly RH
 Power window operation permission signal LIN
