Power Window Control System (W/ Jam Protection Function) - Diagnostics - Introduction
>>
POWER WINDOW CONTROL SYSTEM (w/ Jam Protection Function)
>>
System Diagram [08/2017 - ]
>>
System Diagram [08/2017 - ]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram [08/2017 - ]

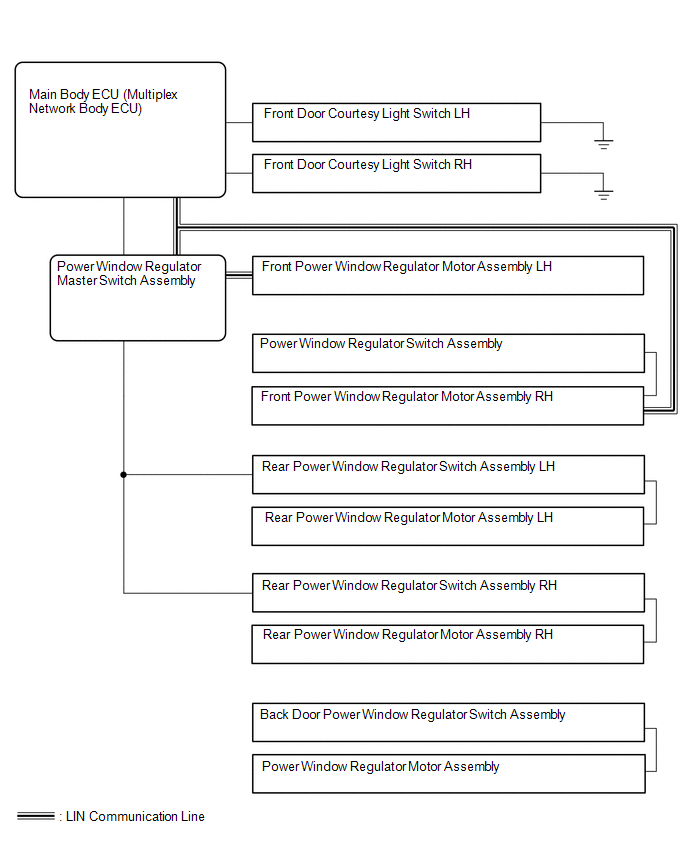

Fig 1: Power Window Control System (W/ Jam Protection Function) Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
