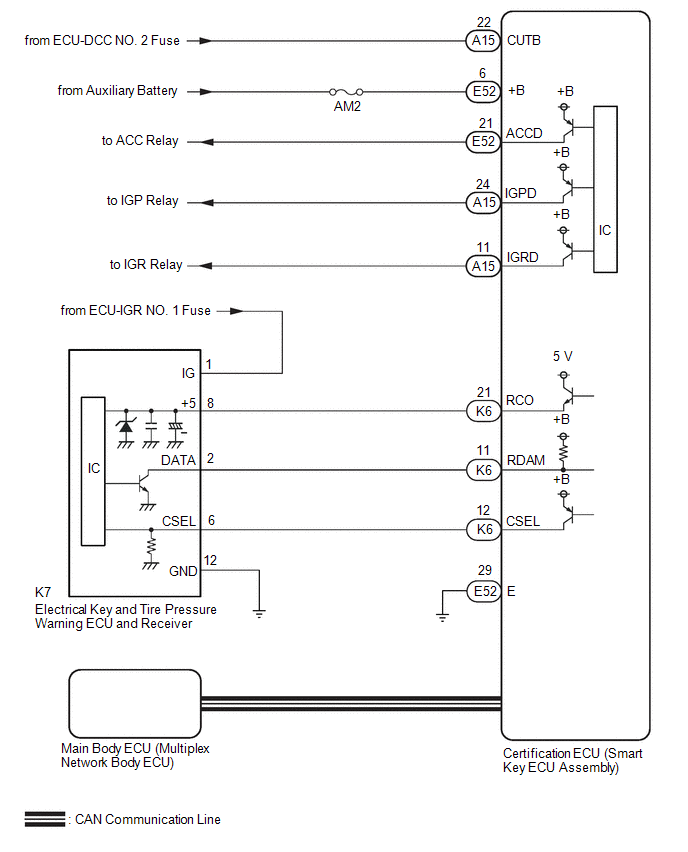

All Door Entry Lock/Unlock Functions and Wireless Functions do not Operate [07/2020 - 10/2022]: Wiring Diagram

GTY1011658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
