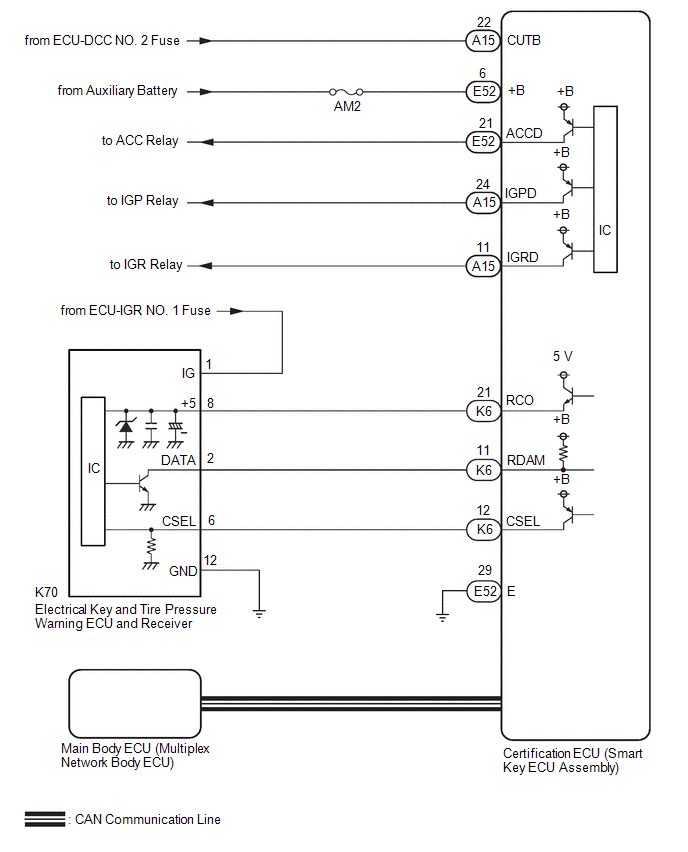

All Door Entry Lock/Unlock Functions and Wireless Functions do not Operate [10/2022 - ]: Wiring Diagram

GTY1107078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
