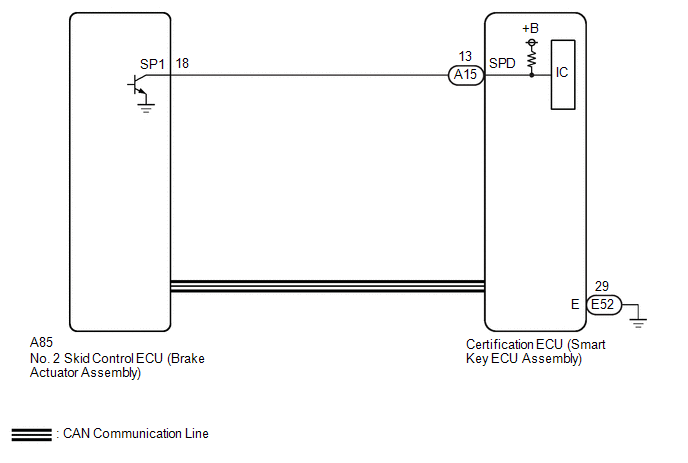

DTC B2282-31: Vehicle Speed Signal Circuit Open; DTC B2282-62: Vehicle Speed Signal Compare Failure [07/2020 - 12/2021]: Wiring Diagram

GTY1015285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
