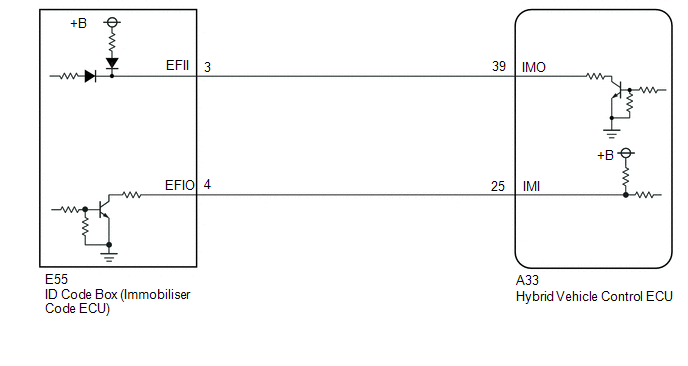

DTC B2799-86: Engine Immobiliser System Signal (Some Circuit Quantity, Reported via Serial Data) Invalid [07/2020 - ]: Wiring Diagram

GTY1006375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
