Power Source Mode does not Change to ON (ACC) [07/2020 - ]: Procedure
- CHECK FOR DTC
- Using the GTS, check for certification ECU (smart key ECU assembly) DTCs.
Body Electrical > Power Source Control > Trouble Codes
Body Electrical > Smart Key > Trouble Codes
Result
Result Proceed to DTCs are not output A Smart key system (for Start Function) DTCs are output B
Result:
B
GO TO DIAGNOSTIC TROUBLE CODE CHART. Refer to DIAGNOSTIC TROUBLE CODE CHART [07/2020 - 12/2021] , or refer to DIAGNOSTIC TROUBLE CODE CHART [12/2021 - ]
Result:
A
See step 2
- Using the GTS, check for certification ECU (smart key ECU assembly) DTCs.
- CHECK HARNESS AND CONNECTOR (POWER DISTRIBUTION BOX ASSEMBLY - POWER SOURCE)
- Disconnect the 4F power distribution box assembly connector.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition 4F-1 - Body ground Ignition switch off 11 to 14 V Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 3
- CHECK POWER DISTRIBUTION BOX ASSEMBLY (ACC RELAY)
- Remove the power distribution box assembly.
Refer to REMOVAL [07/2020 - 10/2022] , or refer to REMOVAL [10/2022 - ]
- Remove the main body ECU (multiplex network body ECU) from the power distribution box assembly.
- Connect the auxiliary battery terminal (+) to the 4B-39 terminal.
- Connect the auxiliary battery terminal (-) to the 4B-36 terminal.

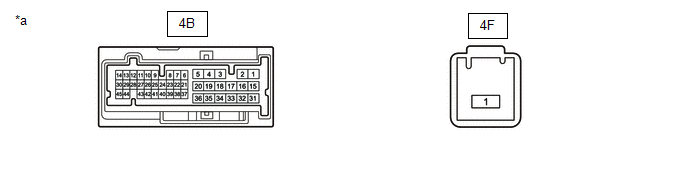

*a Component without harness connected
(Power Distribution Box Assembly)- - - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 4F-1 - 4B-12 Battery voltage applied between terminals 4B-39 and 4B-36 Below 1 Ω Result
Proceed to OK NG
Result:
OK
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
NG
REPLACE POWER DISTRIBUTION BOX ASSEMBLY. Refer to REMOVAL [07/2020 - 10/2022] , or refer to REMOVAL [10/2022 - ]
- Remove the power distribution box assembly.
