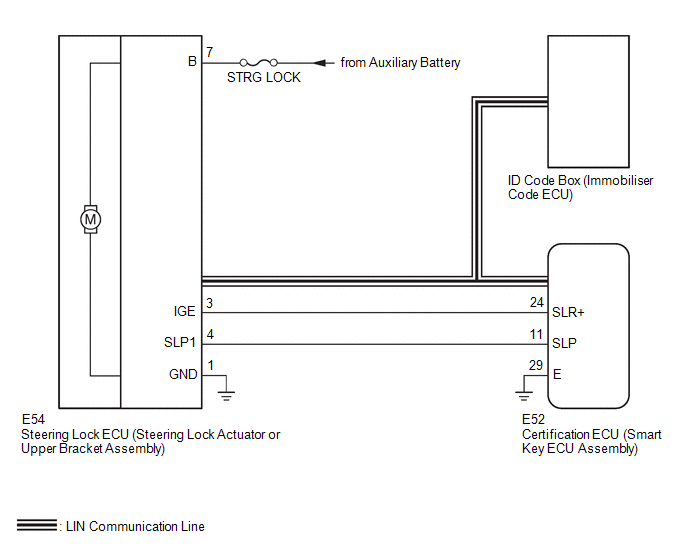

Unable to Unlock Steering Wheel (Hybrid Control System cannot Start) [07/2020 - ]: Wiring Diagram

GTY1013191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
