DTC B2611-96: Telescopic Position Sensor or Telescopic Motor Circuit Component Internal Failure [07/2020 - ]: Procedure

  1. PERFORM ACTIVE TEST USING GTS (TELESCOPIC MOTOR)
    1. Check that the steering column contracts and extends.

      Body Electrical > Tilt&Telescopic > Active Test

      Tester Display
      Telescopic Motor

      Body Electrical > Tilt&Telescopic > Active Test

      Tester Display Measurement Item Control Range
      Telescopic Motor Telescopic Operation LONG/SHORT

      OK

      The steering column contracts and extends.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  6

    Result:

    OK

    See step  2

  2. CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - TELESCOPIC POSITION SENSOR (STEERING COLUMN ASSEMBLY))
    1. Disconnect the E49 multiplex tilt and telescopic ECU connector.
    2. Disconnect the E42 telescopic motor (steering column assembly) connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      E49-14 (VCE) - E42-6 (VCE) Always Below 1 Ω
      E49-15 (TES) - E42-7 (TES) Always Below 1 Ω
      E49-17 (E2) - E42-8 (E2) Always Below 1 Ω
      E49-14 (VCE) or E42-6 (VCE) - Body ground Always 10 kΩ or higher
      E49-15 (TES) or E42-7 (TES) - Body ground Always 10 kΩ or higher
      E49-17 (E2) or E42-8 (E2) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - BODY GROUND)
    1. Disconnect the E49 multiplex tilt and telescopic ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      E49-1 (GND) - Body ground Always Below 1 Ω
      E49-8 (GND2) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  4

  4. CHECK MULTIPLEX TILT AND TELESCOPIC ECU (VCE, TES TERMINAL VOLTAGE)
    1. Reconnect the E49 multiplex tilt and telescopic ECU connector.

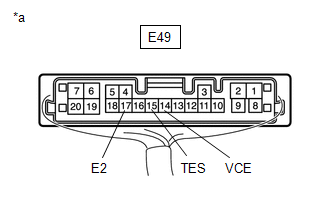

      GTY973057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Multiplex Tilt and Telescopic ECU)
    2. Disconnect the E42 telescopic motor (steering column assembly) connector.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      E49-14 (VCE) - E49-17 (E2) Ignition switch ON 8 to 14 V
      E49-15 (TES) - E49-17 (E2) Ignition switch ON 8 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE MULTIPLEX TILT AND TELESCOPIC ECU. Refer to  REMOVAL [07/2020 - 10/2022]  , or refer to  REMOVAL [10/2022 - ]

    Result:

    OK

    See step  5

  5. CHECK TELESCOPIC POSITION SENSOR (STEERING COLUMN ASSEMBLY)
    1. Reconnect the E49 multiplex tilt and telescopic ECU connector.

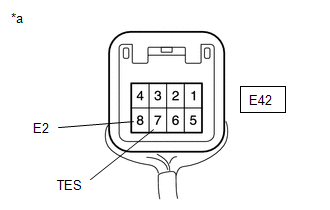

      GTY972469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Telescopic Motor (Steering Column Assembly))
    2. Reconnect the E42 telescopic motor (steering column assembly) connector.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      E42-7 (TES) - E42-8 (E2) Steering column contracting or extending Pulse generation
      High: 8 to 14 V
      Low: Below 1 V

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE MULTIPLEX TILT AND TELESCOPIC ECU. Refer to  REMOVAL [07/2020 - 10/2022]  , or refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    REPLACE STEERING COLUMN ASSEMBLY. Refer to  REMOVAL [07/2020 - 12/2021]  , or refer to  REMOVAL [12/2021 - 10/2022]  , or refer to  REMOVAL [10/2022 - ]

  6. CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - AUXILIARY BATTERY)
    1. Disconnect the E49 multiplex tilt and telescopic ECU connector.

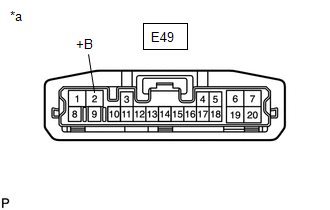

      GTY972775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Multiplex Tilt and Telescopic ECU)
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      E49-2 (+B) - Body ground Ignition switch off 11 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  7

  7. CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - BODY GROUND)
    1. Disconnect the E49 multiplex tilt and telescopic ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      E49-1 (GND) - Body ground Always Below 1 Ω
      E49-8 (GND2) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  8

  8. CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - TELESCOPIC MOTOR (STEERING COLUMN ASSEMBLY))
    1. Disconnect the E49 multiplex tilt and telescopic ECU connector.
    2. Disconnect the E42 telescopic motor (steering column assembly) connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      E49-6 (TEM+) - E42-4 (TEM+) Always Below 1 Ω
      E49-19 (TEM-) - E42-1 (TEM-) Always Below 1 Ω
      E49-6 (TEM+) or E42-4 (TEM+) - Body ground Always 10 kΩ or higher
      E49-19 (TEM-) or E42-1 (TEM-) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  9

  9. CHECK TELESCOPIC MOTOR (STEERING COLUMN ASSEMBLY)

    See step  1

    Result

    Proceed to
    OK
    NG

    Result:

    OK

    REPLACE MULTIPLEX TILT AND TELESCOPIC ECU. Refer to  REMOVAL [07/2020 - 10/2022]  , or refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    REPLACE STEERING COLUMN ASSEMBLY. Refer to  REMOVAL [07/2020 - 12/2021]  , or refer to  REMOVAL [12/2021 - 10/2022]  , or refer to  REMOVAL [10/2022 - ]
