Components [07/2020 - ]

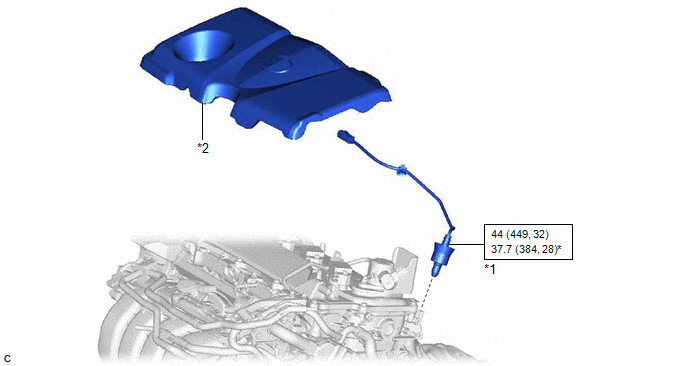

Fig 1: Air Fuel Ratio Sensor (For Sensor 1) Replacement Components With Torque Specification
GTY999867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 AIR FUEL RATIO SENSOR *2 NO. 1 ENGINE COVER SUB-ASSEMBLY
N.m (kgf/cm, ft.lbf): Specified torque * For use with SST
