Installation [07/2020 - ]: Procedure

1. Temporarily install the camshaft timing valve assembly to the camshaft timing exhaust gear assembly.
   NOTE:

   • If the camshaft timing valve assembly has been struck or dropped, replace it.
   • Make sure to fit the protrusion of the camshaft timing valve assembly into the cutout of the camshaft timing exhaust gear assembly.

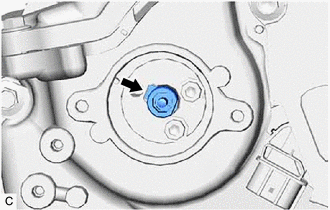

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Using a 5 mm hexagon socket wrench, install the camshaft timing valve assembly with the bolt.

   Torque: 19 N.m (194 kgf/cm, 14 ft.lbf)

3. Pull the camshaft timing valve assembly to confirm that is installed securely.

Refer to INSTALLATION [07/2020 - ]
