Components [07/2020 - 12/2021]
Fig 1: Steering Column Assembly Replacement Components With Torque Specifications [07/2020 - 12/2021] (1 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | STEERING WHEEL ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | LOWER STEERING COLUMN COVER | *2 | TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY |
| *3 | UPPER STEERING COLUMN COVER | - | - |
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 2 AIR DUCT | - | - |
| • | Non-reusable part | - | - |

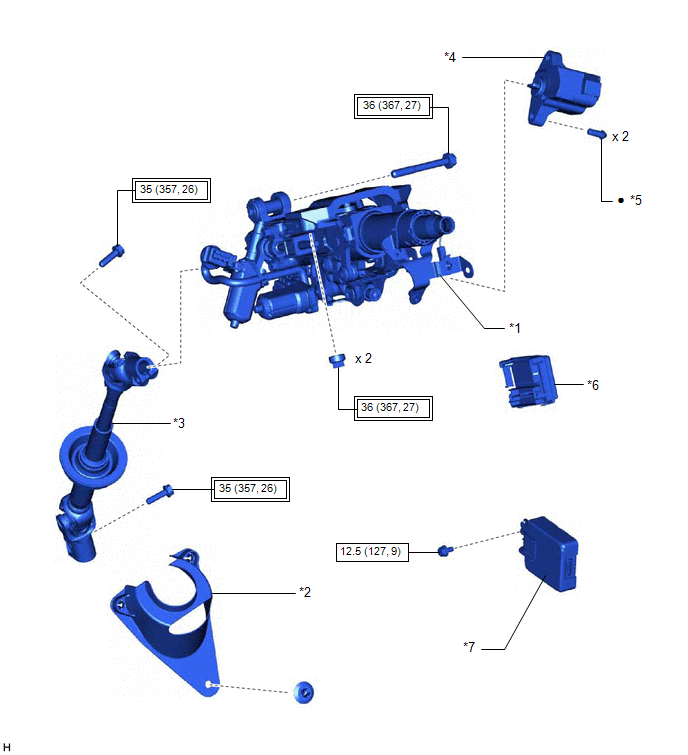

Fig 4: Steering Column Assembly Replacement Components With Torque Specifications [07/2020 - 12/2021] (4 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | STEERING COLUMN ASSEMBLY | *2 | STEERING COLUMN HOLE COVER |
| *3 | STEERING INTERMEDIATE SHAFT ASSEMBLY | *4 | STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY |
| *5 | STEERING LOCK SET BOLT | *6 | MULTIPLEX TILT AND TELESCOPIC ECU |
| *7 | VEHICLE APPROACHING SPEAKER CONTROLLER | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | - | - |
