Disassembly [07/2020 - 12/2021]: Procedure

REMOVE STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY

Secure the steering column assembly in a vise between aluminum plates.
NOTE:
Do not overtighten the vise.

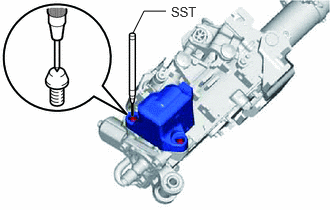

Using SST, strike a punch mark for drilling in the center of the steering lock set bolt.

SST: 09622-00010

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

When striking the punch mark, in order to prevent impact force from being applied to the steering lock actuator or upper bracket assembly, do not use a normal center punch.

Using a drill, drill a hole in the 2 steering lock set bolts and insert a screw extractor.

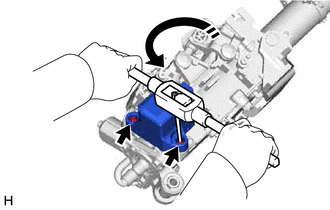

Using the screw extractor, remove the 2 steering lock set bolts and steering lock actuator or upper bracket assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE MULTIPLEX TILT AND TELESCOPIC ECU

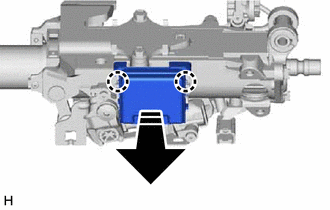

Remove in this direction

Disengage the 2 claws and remove the multiplex tilt and telescopic ECU.
