Reassembly [07/2020 - 12/2021]: Procedure

INSPECT STEERING COLUMN ASSEMBLY

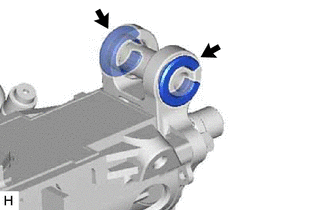

Check that the 2 bushings are securely installed to the steering column assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

If the bushings are deformed, missing or damaged, replace the steering column assembly with a new one.

INSTALL MULTIPLEX TILT AND TELESCOPIC ECU

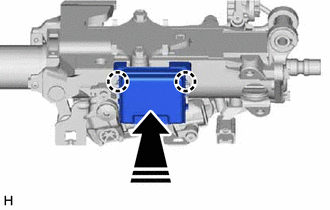

Engage the 2 claws to install the multiplex tilt and telescopic ECU.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this direction

INSTALL STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY

NOTE:

After replacing the steering lock actuator or upper bracket assembly, perform registration.

Secure the steering column assembly in a vise between aluminum plates.
NOTE:
Do not overtighten the vise.

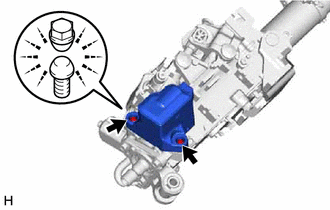

Temporarily install the steering lock actuator or upper bracket assembly with 2 new steering lock set bolts.

Tighten the 2 steering lock set bolts until the bolt head breaks off.
