Removal [07/2020 - 12/2021]: Procedure

  1. PRECAUTION

    Refer to PRECAUTION [07/2020 - 12/2021]

  2. CHANGE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM SETTINGS
    1. Disable the auto tilt away function by changing the customize settings.

      Refer to CUSTOMIZE PARAMETERS [07/2020 - ]

      NOTE:

      Record the current customize setting (whether the auto tilt away function is enabled or disabled) in order to restore the current setting after finishing the operation.

      HINT:

      Performing the above operation causes the auto tilt away function to be disabled when the ignition switch is turned off.

    2. Turn the ignition switch ON. Operate the tilt and telescopic switch to fully extend and lower the steering column assembly.
  3. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  4. REMOVE HORN BUTTON ASSEMBLY

    Refer to REMOVAL [07/2020 - 10/2022]

  5. REMOVE STEERING WHEEL ASSEMBLY

    See step  3

  6. REMOVE LOWER STEERING COLUMN COVER
    NOTE:

    Removing the lower steering column cover in the incorrect order will cause the parts to break.

    1. Remove the 3 screws.
      GTY977145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

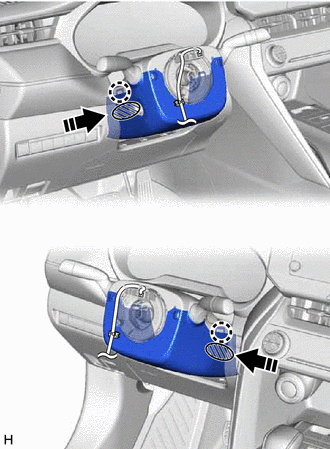

    2. GTY976069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Push Area
      Push in this direction

      While pressing the push area shown in the illustration to disengage the 2 claws, slightly lower the lower steering column cover.

  7. REMOVE UPPER STEERING COLUMN COVER
    1. Disengage the claw and separate the upper steering column cover.

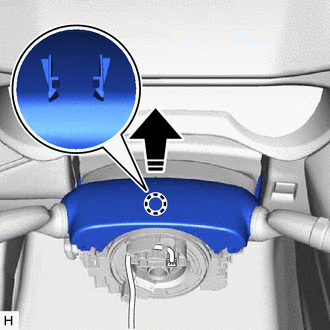

      GTY976993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Separate in this direction
    2. GTY977165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disengage the 2 claws and 4 clips to remove the upper steering column cover.

  8. REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
    NOTE:
    • Do not remove/install the spiral cable with sensor sub-assembly with the auxiliary battery connected and the ignition switch ON.
    • Do not rotate the spiral cable with sensor sub-assembly without the steering wheel assembly installed, with the auxiliary battery connected and the ignition switch ON.
    • Ensure that the steering wheel assembly is installed and aligned straight when inspecting the steering sensor.
    1. Disconnect each connector from the turn signal switch assembly with spiral cable sub-assembly.
    2. Using pliers, expand the clamp.

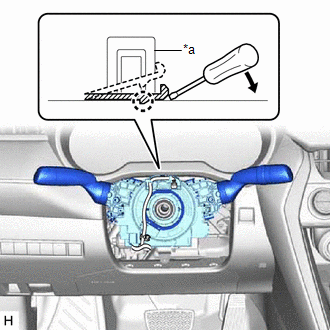

      GTY976367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp
    3. While holding the clamp expanded, raise the claw using a screwdriver to disengage it, and then remove the turn signal switch assembly with spiral cable sub-assembly from the steering column assembly.
  9. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to REMOVAL [07/2020 - 10/2022]

  10. REMOVE NO. 2 AIR DUCT
    1. Remove the 2 bolts.

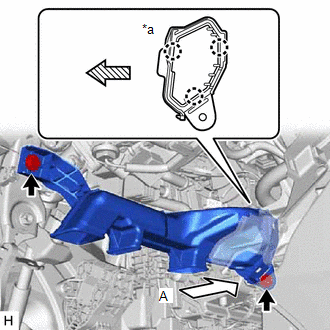

      GTY976492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A
      Front
    2. Disengage the 3 claws to remove the No. 2 air duct.
      NOTE:

      Be careful not to deform or damage the lower heater case of the air conditioner unit assembly when removing the No. 2 air duct.

  11. REMOVE FRONT WHEEL LH

    Refer to REMOVAL [07/2020 - 10/2022]

  12. SEPARATE STEERING INTERMEDIATE SHAFT ASSEMBLY

    Refer to PROCEDURE - Step 5

  13. REMOVE STEERING COLUMN HOLE COVER
    1. Turn back the floor carpet.
    2. Remove the clip.

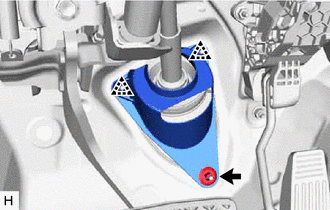

      GTY977156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 clips to remove the steering column hole cover.
  14. REMOVE STEERING INTERMEDIATE SHAFT ASSEMBLY
    1. Using a screwdriver, loosen the clamp as shown in the illustration.

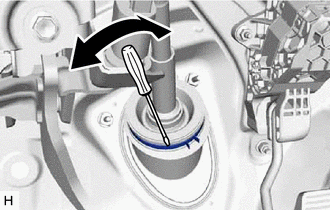

      GTY977155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and slide the steering intermediate shaft assembly.
      NOTE:

      Do not remove the steering intermediate shaft assembly from the steering column assembly.

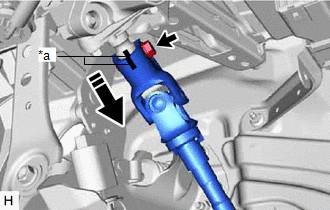

      GTY976163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
      Slide in this direction
    3. Put matchmarks on the steering intermediate shaft assembly and steering column assembly.
    4. Remove the steering intermediate shaft assembly from the steering column assembly.
  15. REMOVE VEHICLE APPROACHING SPEAKER CONTROLLER

    Refer to PROCEDURE - Step 2

  16. REMOVE STEERING COLUMN ASSEMBLY
    1. Disconnect each connector and disengage each wire harness clamp from the steering column assembly.
    2. Remove the bolt, 2 nuts and steering column assembly.

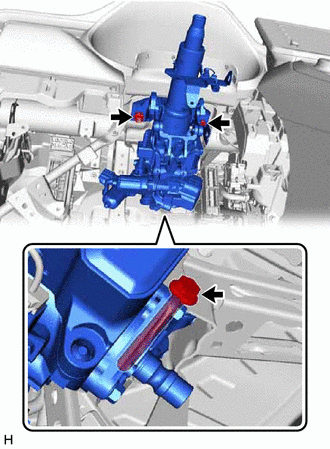

      GTY975791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
