System Diagram [07/2020 - ]

  1. SMART KEY SYSTEM (for Entry Function)

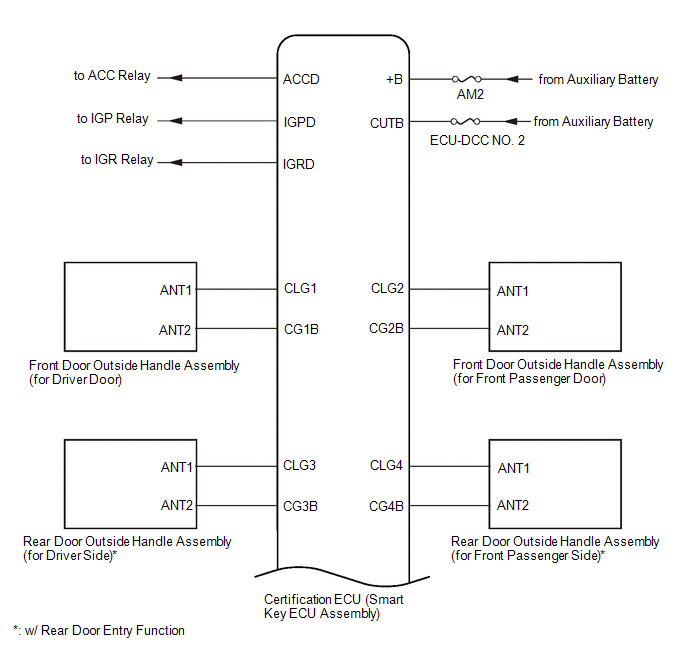

    Fig 1: Smart Key System Wiring Diagram (For Entry Function) (1 Of 2)
    GTY1010332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

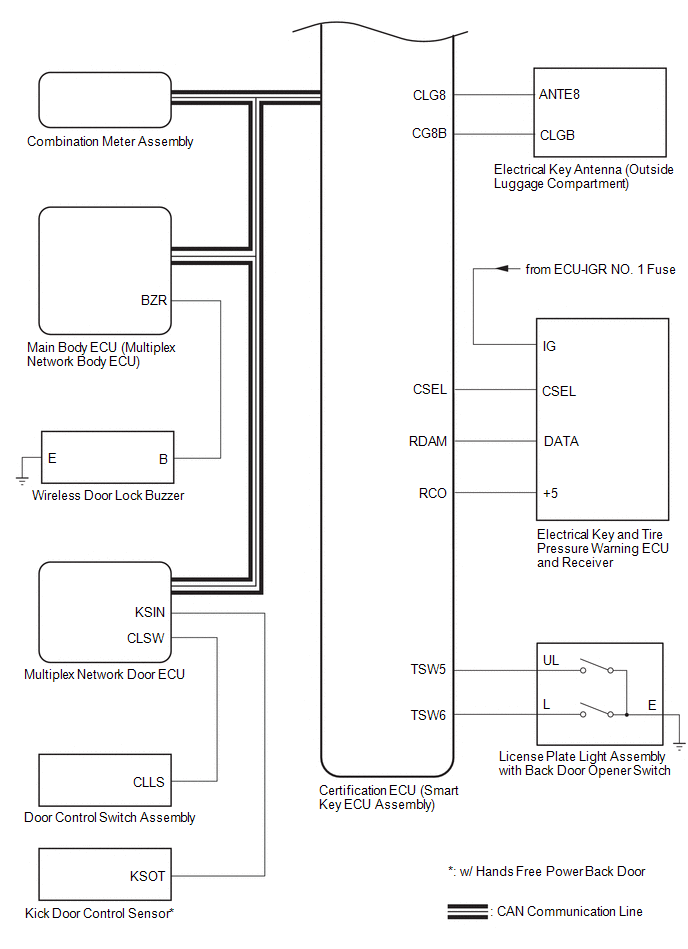

    Fig 2: Smart Key System Wiring Diagram (For Entry Function) (2 Of 2)
    GTY1011877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. SMART KEY SYSTEM (for Start Function)

    Refer to SYSTEM DIAGRAM [07/2020 - ]

  3. POWER DOOR LOCK CONTROL SYSTEM

    Refer to SYSTEM DIAGRAM [07/2020 - ]

  4. WIRELESS DOOR LOCK CONTROL SYSTEM

    Refer to SYSTEM DIAGRAM [07/2020 - ]
