System Diagram [11/2023 - ]

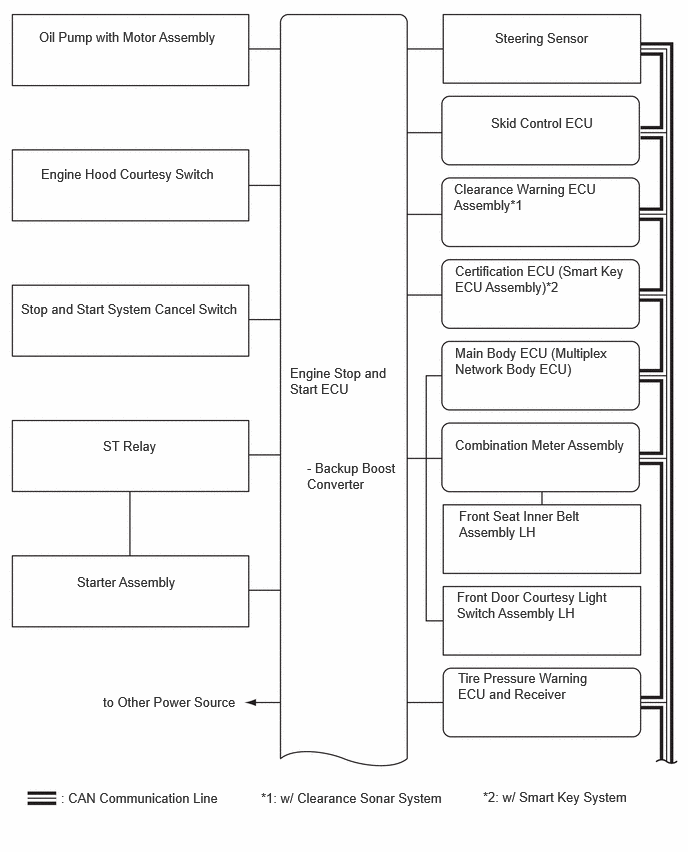

Fig 1: Stop And Start System Diagram (1 of 2)
GTY1180859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

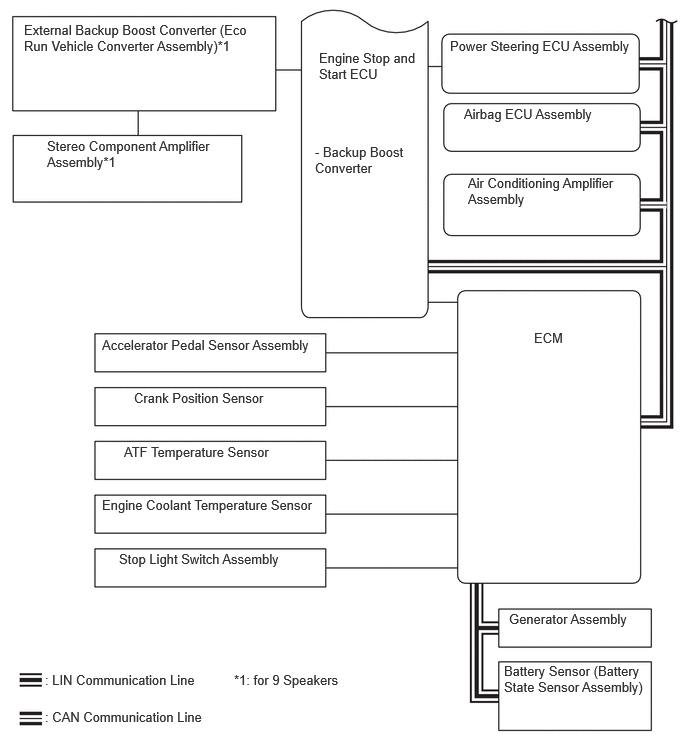

Fig 2: Stop And Start System Diagram (2 of 2)
GTY1030120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
