Components [04/2018 - ]

WARNING: This page is about a different car, the 2022 Toyota Avalon, 2021 Toyota Avalon, 2020 Toyota Avalon, and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

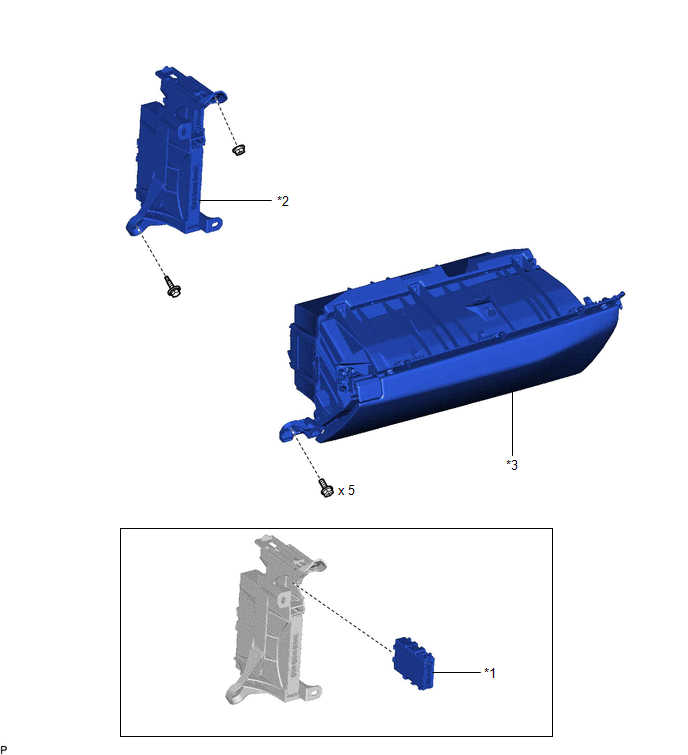

Fig 1: Network Gateway ECU Replacement Components
GTY887844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) *2 ECU INTEGRATION BOX RH
*3 LOWER INSTRUMENT PANEL SUB-ASSEMBLY - -
