Components [08/2019 - 08/2022]

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Toyota 4Runner, 2021 Toyota 4Runner, 2020 Toyota 4Runner, 2019 Toyota 4Runner, and 2018 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

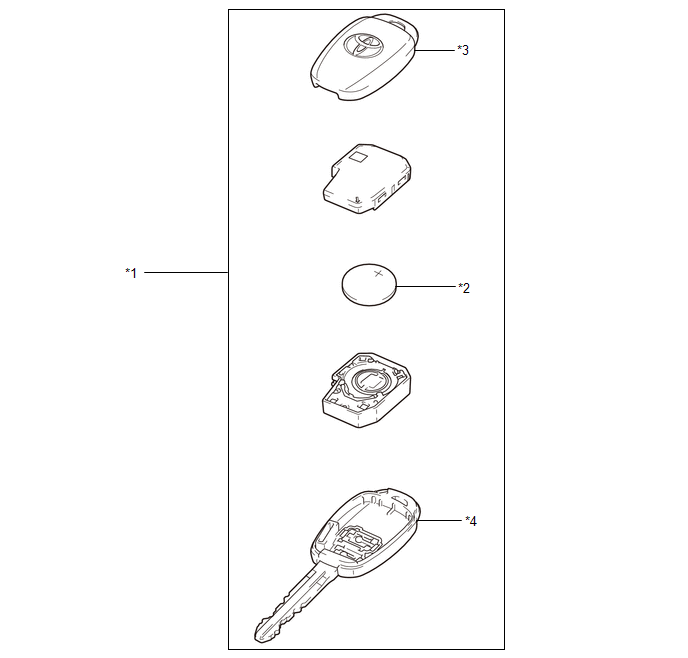

Fig 1: Door Control Transmitter (W/O Smart Key System) Replacement Components [08/2019 - 08/2022
GTY890099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 DOOR CONTROL TRANSMITTER ASSEMBLY *2 TRANSMITTER BATTERY
*3 TRANSMITTER HOUSING COVER *4 TRANSMITTER HOUSING CASE
