Installation [08/2015 - 08/2019]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Toyota 4Runner, 2021 Toyota 4Runner, 2020 Toyota 4Runner, 2019 Toyota 4Runner, and 2018 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL TRANSMITTER BATTERY

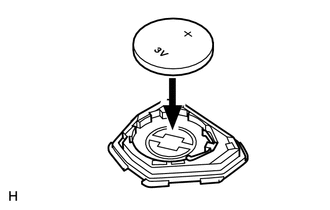

    1. Install the battery (lithium battery: CR2016) with the positive (+) side facing upward as shown in the illustration.
      GTY230431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be careful not to bend the transmitter battery electrode during insertion.
      • Keep the transmitter cover interior free of dust and oil.
    2. Install the cover.
  2. INSTALL DOOR CONTROL TRANSMITTER PACKING
  3. INSTALL DOOR CONTROL TRANSMITTER MODULE
    1. Install the door control transmitter module.
  4. INSTALL TRANSMITTER HOUSING COVER
    1. Install the transmitter housing cover to the transmitter housing case.
    2. Check that the transmitter LED illuminates 3 times when a switch is pressed 3 times.
