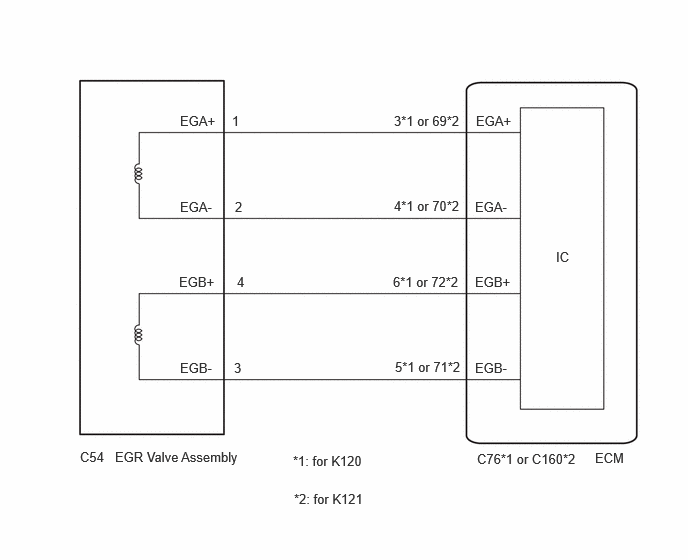

DTC P0403-18: Exhaust Gas Recirculation "A" Circuit Current Below Threshold; DTC P0403-19: Exhaust Gas Recirculation "A" Circuit Current Above Threshold; DTC P1400-18: Exhaust Gas Recirculation "A" Control Circuit 2 Circuit Current Below Threshold; DTC P1400-19: Exhaust Gas Recirculation "A" Control Circuit 2 Circuit Current Above Threshold [03/2023 - 09/2024]: Wiring Diagram

GTY1251752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
