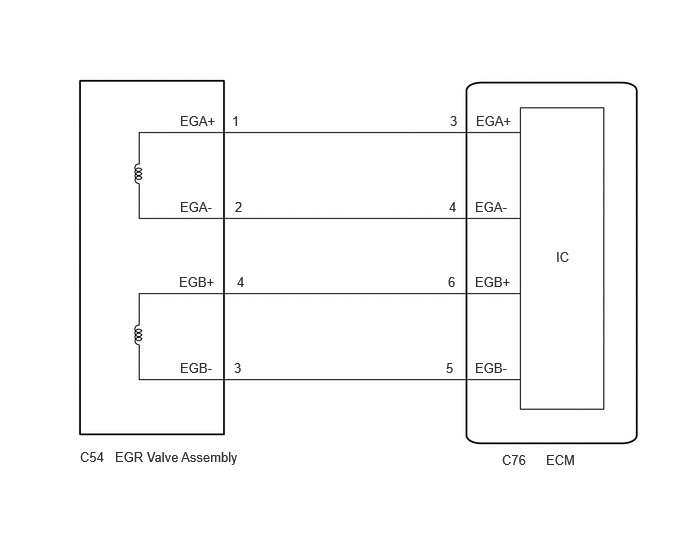

DTC P0403-18: Exhaust Gas Recirculation "A" Circuit Current Below Threshold; DTC P0403-19: Exhaust Gas Recirculation "A" Circuit Current Above Threshold; DTC P1400-18: Exhaust Gas Recirculation "A" Control Circuit 2 Circuit Current Below Threshold; DTC P1400-19: Exhaust Gas Recirculation "A" Control Circuit 2 Circuit Current Above Threshold [06/2018 - 03/2019]: Wiring Diagram

GTY905774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
