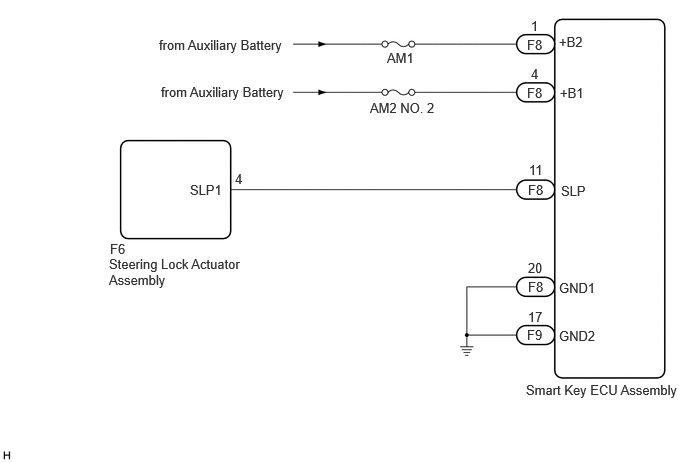

DTC B2285: Steering Lock Position Signal Correlation [11/2021 - ]: Wiring Diagram

GTY1046761

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
