Data List / Active Test [11/2021 - ]

  1. DATA LIST

    Body Electrical > Power Window (Driver) > Data List

    Tester Display Measurement Item Range Diagnostic Note
    Power Supply Voltage Power supply voltage 0 to 20.95 V -
    Courtesy Switch Courtesy switch status Close
    Open    		 -
    One's Seat Switch Status of switch at passenger's own seat OFF
    DOWN
    UP
    UP/DOWN
    AUTO
    AUTO DOWN
    AUTO UP
    UP/DOWN/AUTO    		 -
    Remote switch Remote switch status OFF
    DOWN
    UP
    UP/DOWN
    AUTO
    AUTO DOWN
    AUTO UP
    UP/DOWN/AUTO    		 -
    Window Lock Switch Signal Window lock switch status Unlock
    Lock    		 -
    Remote Control Key Signal Remote control key signal OFF
    DOWN
    UP    		 -
    Operation Enable Signal Operation permission signal Not Permit
    Permit    		 -
    Open Position Pulse Count Full open position pulse count -32768 to 32767 Edge -
    Current Position Pulse Count Current position pulse count -32768 to 32767 Edge -
    Motor Control Mode Motor control status Stop
    One's Seat Manual Down
    One's Seat Manual Up
    One's Seat Auto Down
    One's Seat Auto Up
    Remote Manual Down
    Remote Manual Up
    Remote Auto Down
    Remote Auto Up
    Remote Key Interlocking Down
    Remote Key Interlocking Up
    Reversal Down
    Active Test Down
    Active Test Up
    Index Down
    Index Up    		 -
    ECU Control Mode ECM control status Uninitialized 1
    No Definition
    Uninitialized 2
    Initialized    		 -
    With / Without Forget Closing Window History wherein window position is within a sensing area when key off timer is prohibited Without
    With    		 -
    Record Forget Closing Window Latest Number of times key off timer has been prohibited since key off timer prohibition was detected most recently when the window's position is not in the full close state 0 to 255 Times -
    Record Forget Closing Window 1 Number of times key off timer has been prohibited since key off timer prohibition was detected second last time when the window's position is not in the full close state 0 to 255 Times -
    Record Forget Closing Window 2 Number of times key off timer has been prohibited since key off timer prohibition was detected the third last time when the window's position is not in the full close state 0 to 255 Times -
    Record Forget Closing Window 3 Number of times key off timer has been prohibited since key off timer prohibition was detected the fourth last time when the window's position is not in the full close state 0 to 255 Times -
    Window Position Status Window position information Indefinite
    Fully Open
    Fully Closed
    Other    		 -
    Reason Down Glass Latest Latest DOWN factor information record (Auto, Reverse, etc.) Default
    One's Seat Manual Down
    One's Seat Auto Down
    Remote Manual Down
    Remote Auto Down
    Remote Key Interlocking Down
    Reversal Down
    Active Test Down
    Index Down    		 -
    Reason Down Glass 1 Second latest DOWN factor information record (Auto, Reverse, etc.) Default
    One's Seat Manual Down
    One's Seat Auto Down
    Remote Manual Down
    Remote Auto Down
    Remote Key Interlocking Down
    Reversal Down
    Active Test Down
    Index Down    		 -
    Position when Reversed Glass Latest Window position of the latest reverse operation No Reverse
    Area 5
    Area 4
    Area 3
    Area 2
    Area 1
    No Definition
    Unknown    		 Note 1
    Reverse Parameter Mask Latest Reverse parameters 1 of the latest reverse operation First Motion Mask within Two of the Interval
    First Motion Mask without Two of the Interval    		 -
    Reverse Parameter Speed Latest Reverse parameters 2 of the latest reverse operation Less than Vehicle Speed 5 km/h
    More than Vehicle Speed 5 km/h    		 -
    Position when Reversed Glass 1 Window position of the second latest reverse operation No Reverse
    Area 5
    Area 4
    Area 3
    Area 2
    Area 1
    No Definition
    Unknown    		 Note 1
    Reverse Parameter Mask 1 Reverse parameters 1 of the second latest reverse operation First Motion Mask within Two of the Interval
    First Motion Mask without Two of the Interval    		 -
    Reverse Parameter Speed 1 Reverse parameters 2 of the second latest reverse operation Less than Vehicle Speed 5 km/h
    More than Vehicle Speed 5 km/h    		 -
    Position when Reversed Glass 2 Window position of the third latest reverse operation No Reverse
    Area 5
    Area 4
    Area 3
    Area 2
    Area 1
    No Definition
    Unknown    		 Note 1
    Reverse Parameter Mask 2 Reverse parameters 1 of the third latest reverse operation First Motion Mask within Two of the Interval
    First Motion Mask without Two of the Interval    		 -
    Reverse Parameter Speed 2 Reverse parameters 2 of the third latest reverse operation Less than Vehicle Speed 5 km/h
    More than Vehicle Speed 5 km/h    		 -
    Position when Reversed Glass 3 Window position of the fourth latest reverse operation No Reverse
    Area 5
    Area 4
    Area 3
    Area 2
    Area 1
    No Definition
    Unknown    		 Note 1
    Reverse Parameter Mask 3 Reverse parameters 1 of the fourth latest reverse operation First Motion Mask within Two of the Interval
    First Motion Mask without Two of the Interval    		 -
    Reverse Parameter Speed 3 Reverse parameters 2 of the fourth latest reverse operation Less than Vehicle Speed 5 km/h
    More than Vehicle Speed 5 km/h    		 -
    Position when Stop Glass Latest Window position of the latest window stop operation due to drawing foreign matters Not Involve
    Area 5
    Area 4
    Area 3
    Area 2
    Area 1
    No Definition
    Unknown    		 Note 2
    Stop Parameter Mask Latest Parameters 1 of the latest window stop operation due to drawing foreign matters First Motion Mask within Two of the Interval
    First Motion Mask without Two of the Interval    		 -
    Stop Parameter Speed Latest Parameters 2 of the latest window stop operation due to drawing foreign matters Less than Vehicle Speed 5 km/h
    More than Vehicle Speed 5 km/h    		 -
    Position when Stop Glass 1 Window position of the second latest window stop operation due to drawing foreign matters Not Involve
    Area 5
    Area 4
    Area 3
    Area 2
    Area 1
    No Definition
    Unknown    		 Note 2
    Stop Parameter Mask 1 Parameters 1 of the second latest window stop operation due to drawing foreign matters First Motion Mask within Two of the Interval
    First Motion Mask without Two of the Interval    		 -
    Stop Parameter Speed 1 Parameters 2 of the second latest window stop operation due to drawing foreign matters Less than Vehicle Speed 5 km/h
    More than Vehicle Speed 5 km/h    		 -
    Position when Stop Glass 2 Window position of the third latest window stop operation due to drawing foreign matters Not Involve
    Area 5
    Area 4
    Area 3
    Area 2
    Area 1
    No Definition
    Unknown    		 Note 2
    Stop Parameter Mask 2 Parameters 1 of the third latest window stop operation due to drawing foreign matters First Motion Mask within Two of the Interval
    First Motion Mask without Two of the Interval    		 -
    Stop Parameter Speed 2 Parameters 2 of the third latest window stop operation due to drawing foreign matters Less than Vehicle Speed 5 km/h
    More than Vehicle Speed 5 km/h    		 -
    Position when Stop Glass 3 Window position of the fourth latest window stop operation due to drawing foreign matters Not Involve
    Area 5
    Area 4
    Area 3
    Area 2
    Area 1
    No Definition
    Unknown    		 Note 2
    Stop Parameter Mask 3 Parameters 1 of the fourth latest window stop operation due to drawing foreign matters First Motion Mask within Two of the Interval
    First Motion Mask without Two of the Interval    		 -
    Stop Parameter Speed 3 Parameters 2 of the fourth latest window stop operation due to drawing foreign matters Less than Vehicle Speed 5 km/h
    More than Vehicle Speed 5 km/h    		 -

    Body Electrical > Power Window (Passenger) > Data List

    Tester Display Measurement Item Range Diagnostic Note
    Power Supply Voltage Power supply voltage 0 to 20.95 V -
    Courtesy Switch Courtesy switch status Close
    Open    		 -
    One's Seat Switch Status of switch at passenger's own seat OFF
    DOWN
    UP
    UP/DOWN
    AUTO
    AUTO DOWN
    AUTO UP
    UP/DOWN/AUTO    		 -
    Remote switch Remote switch status OFF
    DOWN
    UP
    UP/DOWN
    AUTO
    AUTO DOWN
    AUTO UP
    UP/DOWN/AUTO    		 -
    Window Lock Switch Signal Window lock switch status Unlock
    Lock    		 -
    Remote Control Key Signal Remote control key signal OFF
    DOWN
    UP    		 -
    Operation Enable Signal Operation permission signal Not Permit
    Permit    		 -
    Open Position Pulse Count Full open position pulse count -32768 to 32767 Edge -
    Current Position Pulse Count Current position pulse count -32768 to 32767 Edge -
    Motor Control Mode Motor control status Stop
    One's Seat Manual Down
    One's Seat Manual Up
    One's Seat Auto Down
    One's Seat Auto Up
    Remote Manual Down
    Remote Manual Up
    Remote Auto Down
    Remote Auto Up
    Remote Key Interlocking Down
    Remote Key Interlocking Up
    Reversal Down
    Active Test Down
    Active Test Up
    Index Down
    Index Up    		 -
    ECU Control Mode ECM control status Uninitialized 1
    No Definition
    Uninitialized 2
    Initialized    		 -
    With / Without Forget Closing Window History wherein window position is within a sensing area when key off timer is prohibited Without
    With    		 -
    Record Forget Closing Window Latest Number of times key off timer has been prohibited since key off timer prohibition was detected most recently when the window's position is not in the full close state 0 to 255 Times -
    Record Forget Closing Window 1 Number of times key off timer has been prohibited since key off timer prohibition was detected second last time when the window's position is not in the full close state 0 to 255 Times -
    Record Forget Closing Window 2 Number of times key off timer has been prohibited since key off timer prohibition was detected the third last time when the window's position is not in the full close state 0 to 255 Times -
    Record Forget Closing Window 3 Number of times key off timer has been prohibited since key off timer prohibition was detected the fourth last time when the window's position is not in the full close state 0 to 255 Times -
    Window Position Status Window position information Indefinite
    Fully Open
    Fully Closed
    Other    		 -
    Reason Down Glass Latest Latest DOWN factor information record (Auto, Reverse, etc.) Default
    One's Seat Manual Down
    One's Seat Auto Down
    Remote Manual Down
    Remote Auto Down
    Remote Key Interlocking Down
    Reversal Down
    Active Test Down
    Index Down    		 -
    Reason Down Glass 1 Second latest DOWN factor information record (Auto, Reverse, etc.) Default
    One's Seat Manual Down
    One's Seat Auto Down
    Remote Auto Down
    Remote Key Interlocking Down
    Reversal Down
    Active Test Down
    Index Down    		 -
    Position when Reversed Glass Latest Window position of the latest reverse operation No Reverse
    Area 5
    Area 4
    Area 3
    Area 2
    Area 1
    No Definition
    Unknown    		 Note 1
    Reverse Parameter Mask Latest Reverse parameters 1 of the latest reverse operation First Motion Mask within Two of the Interval
    First Motion Mask without Two of the Interval    		 -
    Reverse Parameter Speed Latest Reverse parameters 2 of the latest reverse operation Less than Vehicle Speed 5 km/h
    More than Vehicle Speed 5 km/h    		 -
    Position when Reversed Glass 1 Window position of the second latest reverse operation No Reverse
    Area 5
    Area 4
    Area 3
    Area 2
    Area 1
    No Definition
    Unknown    		 Note 1
    Reverse Parameter Mask 1 Reverse parameters 1 of the second latest reverse operation First Motion Mask within Two of the Interval
    First Motion Mask without Two of the Interval    		 -
    Reverse Parameter Speed 1 Reverse parameters 2 of the second latest reverse operation Less than Vehicle Speed 5 km/h
    More than Vehicle Speed 5 km/h    		 -
    Position when Reversed Glass 2 Window position of the third latest reverse operation No Reverse
    Area 5
    Area 4
    Area 3
    Area 2
    Area 1
    No Definition
    Unknown    		 Note 1
    Reverse Parameter Mask 2 Reverse parameters 1 of the third latest reverse operation First Motion Mask within Two of the Interval
    First Motion Mask without Two of the Interval    		 -
    Reverse Parameter Speed 2 Reverse parameters 2 of the third latest reverse operation Less than Vehicle Speed 5 km/h
    More than Vehicle Speed 5 km/h    		 -
    Position when Reversed Glass 3 Window position of the fourth latest reverse operation No Reverse
    Area 5
    Area 4
    Area 3
    Area 2
    Area 1
    No Definition
    Unknown    		 Note 1
    Reverse Parameter Mask 3 Reverse parameters 1 of the fourth latest reverse operation First Motion Mask within Two of the Interval
    First Motion Mask without Two of the Interval    		 -
    Reverse Parameter Speed 3 Reverse parameters 2 of the fourth latest reverse operation Less than Vehicle Speed 5 km/h
    More than Vehicle Speed 5 km/h    		 -
    Position when Stop Glass Latest Window position of the latest window stop operation due to drawing foreign matters No Reverse
    Area 5
    Area 4
    Area 3
    Area 2
    Area 1
    No Definition
    Unknown    		 Note 2
    Stop Parameter Mask Latest Parameters 1 of the latest window stop operation due to drawing foreign matters First Motion Mask within Two of the Interval
    First Motion Mask without Two of the Interval    		 -
    Stop Parameter Speed Latest Parameters 2 of the latest window stop operation due to drawing foreign matters Less than Vehicle Speed 5 km/h
    More than Vehicle Speed 5 km/h    		 -
    Position when Stop Glass 1 Window position of the second latest window stop operation due to drawing foreign matters No Reverse
    Area 5
    Area 4
    Area 3
    Area 2
    Area 1
    No Definition
    Unknown    		 Note 2
    Stop Parameter Mask 1 Parameters 1 of the second latest window stop operation due to drawing foreign matters First Motion Mask within Two of the Interval
    First Motion Mask without Two of the Interval    		 -
    Stop Parameter Speed 1 Parameters 2 of the second latest window stop operation due to drawing foreign matters Less than Vehicle Speed 5 km/h
    More than Vehicle Speed 5 km/h    		 -
    Position when Stop Glass 2 Window position of the third latest window stop operation due to drawing foreign matters No Reverse
    Area 5
    Area 4
    Area 3
    Area 2
    Area 1
    No Definition
    Unknown    		 Note 2
    Stop Parameter Mask 2 Parameters 1 of the third latest window stop operation due to drawing foreign matters First Motion Mask within Two of the Interval
    First Motion Mask without Two of the Interval    		 -
    Stop Parameter Speed 2 Parameters 2 of the third latest window stop operation due to drawing foreign matters Less than Vehicle Speed 5 km/h
    More than Vehicle Speed 5 km/h    		 -
    Position when Stop Glass 3 Window position of the fourth latest window stop operation due to drawing foreign matters No Reverse
    Area 5
    Area 4
    Area 3
    Area 2
    Area 1
    No Definition
    Unknown    		 Note 2
    Stop Parameter Mask 3 Parameters 1 of the fourth latest window stop operation due to drawing foreign matters First Motion Mask within Two of the Interval
    First Motion Mask without Two of the Interval    		 -
    Stop Parameter Speed 3 Parameters 2 of the fourth latest window stop operation due to drawing foreign matters Less than Vehicle Speed 5 km/h
    More than Vehicle Speed 5 km/h    		 -

    HINT:

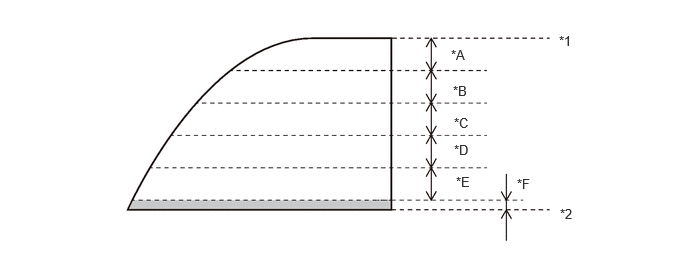

    1. Definition of window position when it reverses

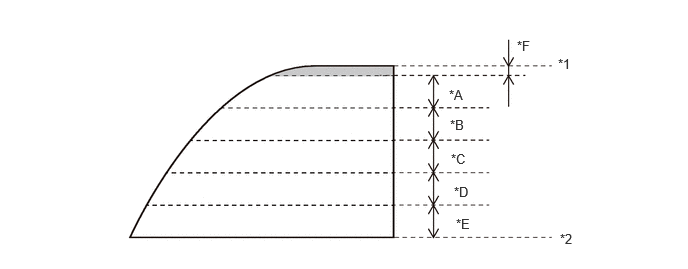

      GTY1051612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Top dead position *2 Bottom dead position
      *A Area 1 *B Area 2
      *C Area 3 *D Area 4
      *E Area 5 *F Non-sensing areas

      Area 1 to Area 5 are equal

    2. Definition of window position when it stops due to drawing foreign matters
      GTY1051005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Top dead position *2 Bottom dead position
      *A Area 1 *B Area 2
      *C Area 3 *D Area 4
      *E Area 5 *F Non-sensing areas

      Area 1 to Area 5 are equal

    Body Electrical > Power Window (Switch) > Data List

    Tester Display Measurement Item Range Diagnostic Note
    Drivers Seat Auto SW State Driver's side AUTO SW status OFF
    ON    		 -
    Drivers Seat Auto SW Present ON Trouble Driver's side AUTO SW current ON malfunction No detection
    Yes    		 -
    Passenger Seat Auto SW State Passenger's side AUTO SW status OFF
    ON    		 -
    Passenger Seat Auto SW Present ON Trouble Passenger's side AUTO SW current ON malfunction No detection
    Yes    		 -
    Passenger Seat Manual Up SW State Passenger's side MANUAL UP SW status OFF
    ON
    Passenger Seat Manual Up SW Present ON Trouble Passenger's side MANUAL UP SW current ON malfunction No detection
    Yes    		 -
    Passenger Seat Manual Down SW State Passenger's side MANUAL DOWN SW status OFF
    ON    		 -
    Passenger Seat Manual Down SW Present ON Trouble Passenger's side MANUAL DOWN SW current ON malfunction No detection
    Yes    		 -
    Window Lock Switch State Window lock switch status OFF
    ON    		 -
  2. ACTIVE TEST

    Body Electrical > Power Window (Driver) > Active Test

    Tester Display Measurement Item Control Range Diagnostic Note
    Power Window Operation Test Up By forcibly operating the power window motor, it is possible to determine whether motor's up and stop functions work normally. Unexecuted
    Executed
    Normal End
    • Ignition switch ON
    • Initialized state
    • Pulse fail not detected
    • UP terminal input OFF
    • DOWN terminal input OFF
    • AUTO terminal input OFF
    • Power windows tops
    Power Window Operation Test Down By forcibly operating the power window motor, it is possible to determine whether motor's down and stop functions work normally. Unexecuted
    Executed
    Normal End
    • Ignition switch ON
    • Initialized state
    • Pulse fail not detected
    • UP terminal input OFF
    • DOWN terminal input OFF
    • AUTO terminal input OFF
    • Power windows tops
    LED Switch Lighting Test It is possible to determine whether the ON and OFF functions of the power window switch LED of each seat work normally. (When Diagnosis mode is switched)
    HINT:
    The LED should come on and off as the ignition switch is turned ON and OFF.    		 Unexecuted
    Executed
    Normal End    		 Ignition switch ON

    Body Electrical > Power Window (Passenger) > Active Test

    Tester Display Measurement Item Control Range Diagnostic Note
    Power Window Operation Test Up By forcibly operating the power window motor, it is possible to determine whether motor's up and stop functions work normally. Unexecuted
    Executed
    Normal End
    • Ignition switch ON
    • Initialized state
    • Pulse fail not detected
    • UP terminal input OFF
    • DOWN terminal input OFF
    • AUTO terminal input OFF
    • Power windows tops
    Power Window Operation Test Down By forcibly operating the power window motor, it is possible to determine whether motor's down and stop functions work normally. Unexecuted
    Executed
    Normal End
    • Ignition switch ON
    • Initialized state
    • Pulse fail not detected
    • UP terminal input OFF
    • DOWN terminal input OFF
    • AUTO terminal input OFF
    • Power windows tops
    LED Switch Lighting Test It is possible to determine whether the ON and OFF functions of the power window switch LED of each seat work normally. (When Diagnosis mode is switched)
    HINT:
    The LED should come on and off as the ignition switch is turned ON and OFF.    		 Unexecuted
    Executed
    Normal End    		 Ignition switch ON
scientia non olet · About LEMON Manuals
