Reassembly [11/2021 - ]: Procedure

  1. INSTALL STEERING LOCK ACTUATOR ASSEMBLY

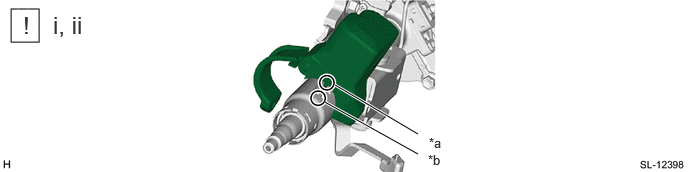

    1. GTY1048721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Fitting portion *b Opening portion
    2. Secure the steering lock actuator assembly to the steering column assembly.

      HINT:

      When installing the steering lock actuator assembly, confirm that the fitting portion of the steering lock actuator assembly is properly engaged with the opening portion of the column shaft.

    3. Use new set bolts. Tighten the bolt until the bolt head is broken (bolt head wrenched off).
