Inspection [11/2021 - ]: Procedure

  1. INSPECT AIR FUEL RATIO SENSOR
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 - 2 20°C (68°F) 1.8 to 2.2 Ω

      If the result is not as specified, replace the air fuel ratio sensor.

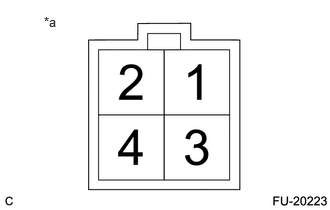

      GTY1049495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Air Fuel Ratio Sensor)
