Disassembly [11/2021 - ]: Procedure

  1. REMOVE STEERING LOCK ACTUATOR ASSEMBLY

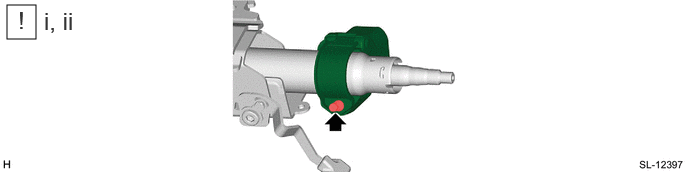

    1. GTY1049264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Secure the steering column assembly in a vise.
      2. Use the screw extractor and drill to remove the set bolt, and remove the steering lock actuator assembly.
        NOTE:

        Do not apply any impact to the set bolt by a chisel or punch. Doing so may damage the steering lock actuator assembly.
