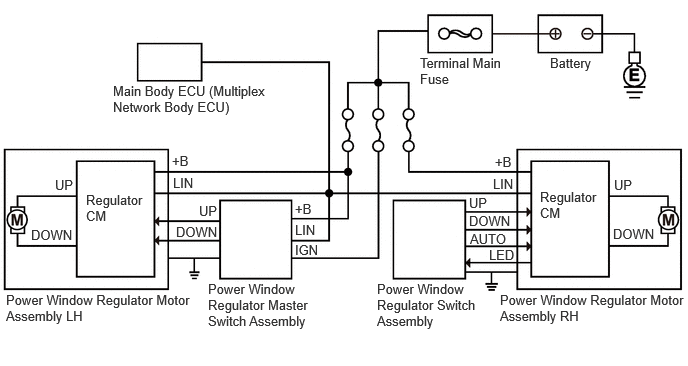

System Diagram [11/2021 - ]
The power window regulator motor assembly (of the driver's or passenger's seat) is equipped with a control module. It is connected with the main body ECU (multiplex network body ECU) via LIN communication. Operation is performed using individual switches. Pulse signals of the motor are used for auto-reversing.
