Power Window Control System - Diagnostics - Introduction
>>
Power Window Control System
>>
System Diagram [11/2020 - 12/2023]
>>
System Diagram [11/2020 - 12/2023]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram [11/2020 - 12/2023]

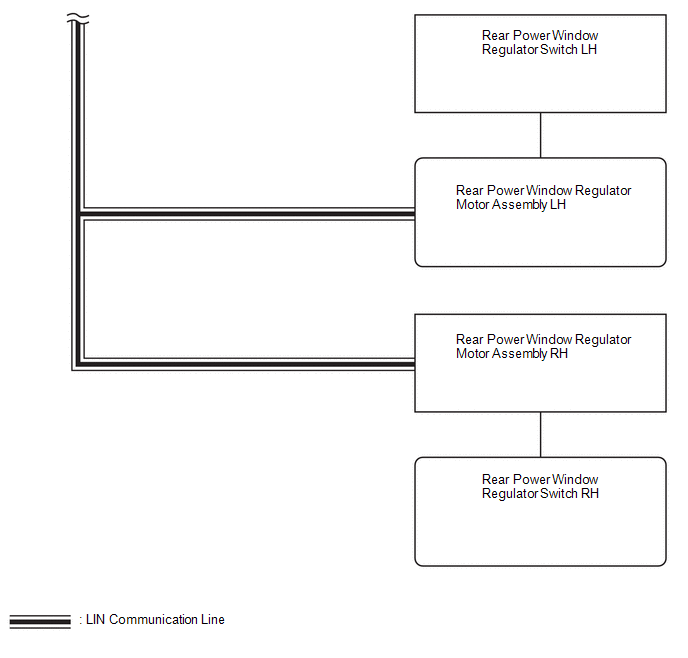

Fig 1: Power Window Control System Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

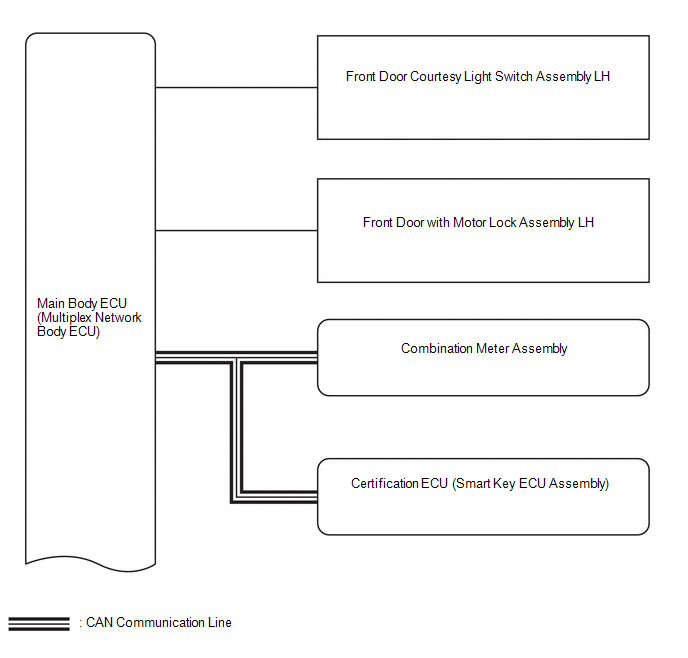

Fig 2: Power Window Control System Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

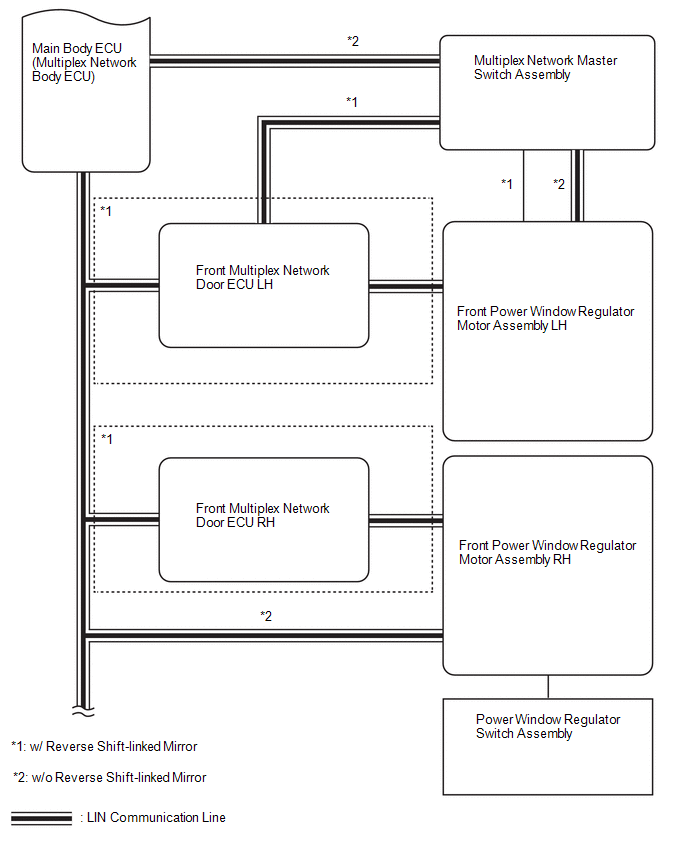

Fig 3: Power Window Control System Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
