System Diagram [12/2023 - ]

WARNING: This page is about a different car, the 2024 Toyota Mirai. However, it is still accessible from the selected car via links, so may be relevant.

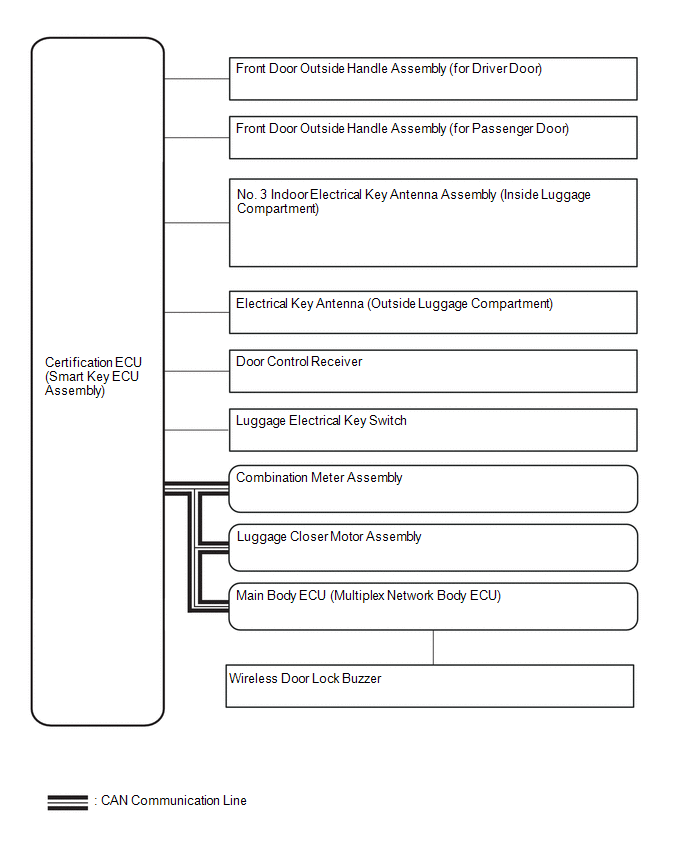

  1. SMART KEY SYSTEM (for Entry Function)
    GTY1015877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. SMART KEY SYSTEM (for Start Function)

    Refer to SYSTEM DIAGRAM [12/2023 - ]

  3. POWER DOOR LOCK CONTROL SYSTEM

    Refer to SYSTEM DIAGRAM [12/2023 - ]

  4. WIRELESS DOOR LOCK CONTROL SYSTEM

    Refer to SYSTEM DIAGRAM [12/2023 - ]
