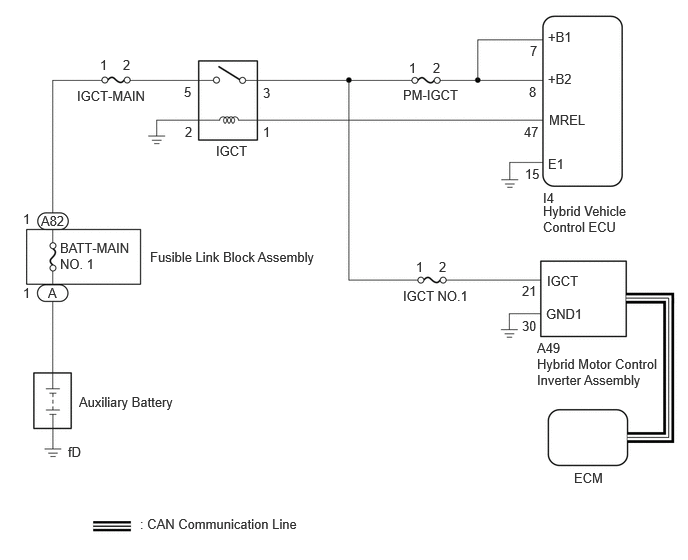

DTC P0A1B-94: Drive Motor "A" Control Module Performance Unexpected Operation [09/2022 - ]: Wiring Diagram

GTY1096950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
