Keyless Access System - Diagnostics - Introduction
>>
Keyless Access System With Push Button Start
>>

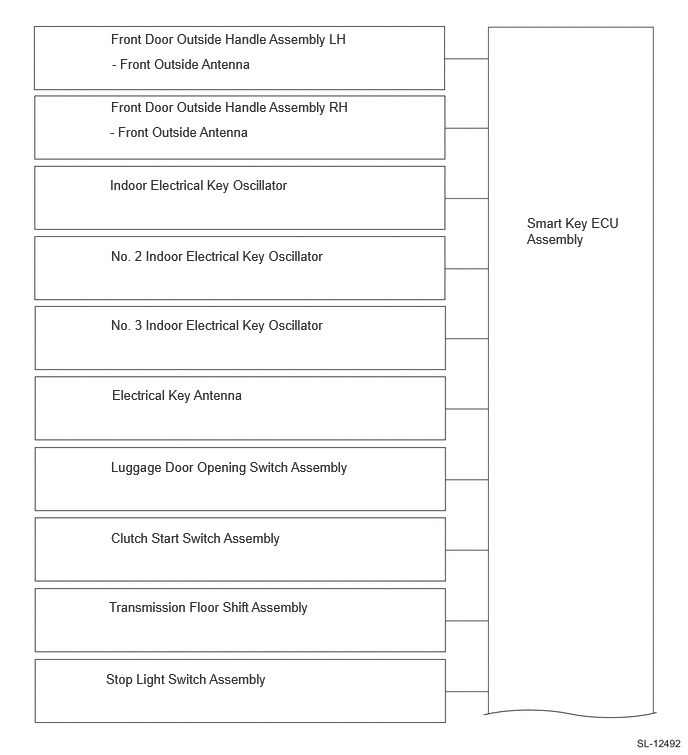

System Diagram [11/2021 - ]
>>

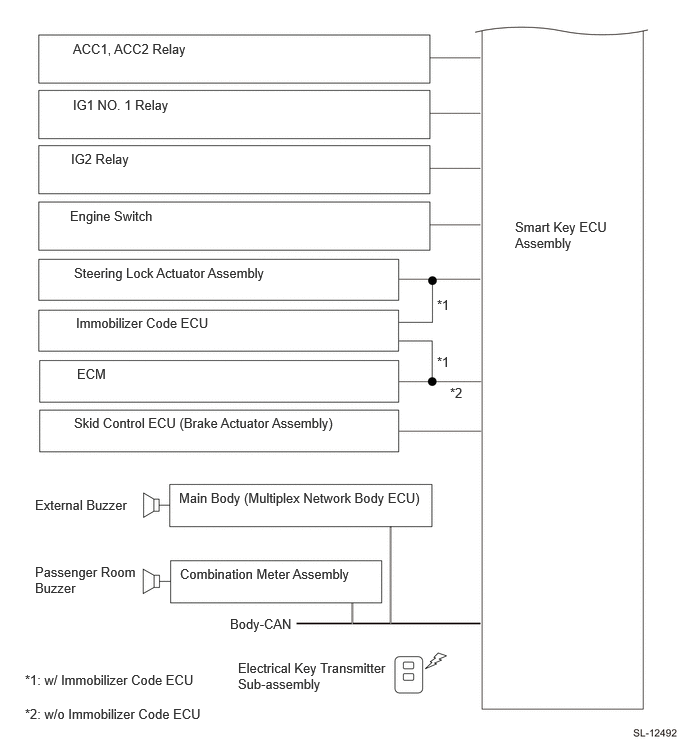

System Diagram [11/2021 - ]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram [11/2021 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
