Freeze Frame Data [11/2021 - ]
- FREEZE FRAME DATA
ECM records the engine status at detection when it detects DTCs. (Freeze Frame Data)
Freeze Frame Data is recorded on up to a second detected DTC, and not recorded on a third detected DTC and later.
HINT:
- As the Freeze Frame Data is recorded with DTC detected, permanent monitoring cannot be performed.
- For the first detected DTC, time series Freeze Frame Data is recorded.
- When performing diagnosis, you can utilize the Freeze Frame Data to guess the vehicle status when the DTC was detected.

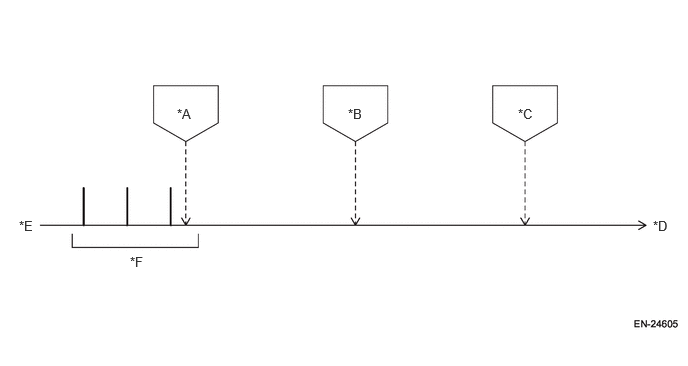

*A First detected DTC *B Second detected DTC *C Third detected DTC or later *D Current *E Past *F Time series Freeze Frame Data - TIME SERIES FREEZE FRAME DATA
ECM obtains Freeze Frame Data every 0.5 seconds. When DTC is detected, Freeze Frame Data of [Detect], [1before], [History2] and [History3] is saved. (Time series Freeze Frame Data)
HINT:
You can utilize the time series Freeze Frame Data for diagnosis by checking the status of data changes three times earlier than the DTC was detected.

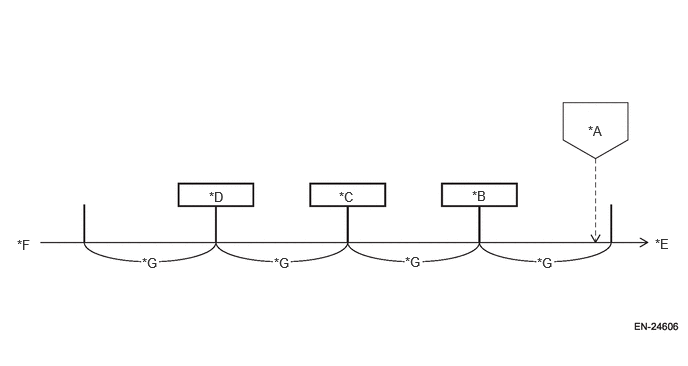

*A [Detect] *B [1 before] *C [History2] *D [History3] *E Current *F Past *G 0.5 sec. - - - LIST
HINT:
Some items are not displayed according to the specifications.
Powertrain > Engine Control System
Tester Display Engine Speed Mass Air Flow Mass Air Flow Average Vehicle Speed Throttle Opening Angle Accel. Opening Angle A/F Sensor #1 Ignition timing adv. #1 Coolant Temp. Short term fuel trim B1 Long term fuel trim B1 Mani. Absolute Pressure Oxygen sensor #12 VVT Adv. Ang. Amount R VVT Advance Target Angle Amount R VVT Adv. Ang. Amount L VVT Advance Target Angle Amount L Exh. VVT Retard Ang. R Ex VVT Retard Target Angle R Exh. VVT Retard Ang. L Ex VVT Retard Target Angle L Number of Cleaning Executions for VVT Self-recovery Number of Cleaning Executions for Ex VVT Self-recovery Control module voltage Target Equivalence Ratio Oil Temperature Intake Air Temp. Ambient Temperature Ambient Temperature Sensor Signal Calculated load value Absolute Load Value Atmosphere Pressure Target Throttle Opening Angle Actual Throttle Opening Angle Target Throttle Opening Angle Relative Throttle Pos. Idle Mass Air Flow Idle Mass Air Flow Feedback correct ISC Learning Value Idle A/C load correct Electric Load Feedback Val Idle dirty throttle correct Fuel Rail Pressure A Fuel Rail Pressure B Commanded Fuel Rail Pressure A Commanded Fuel Rail Pressure B Fuel Level Fuel Rail Temperature A Fuel Rail Temperature B Fuel Pump Duty Fuel Increase 1 at the High Temperature Restart Judgment Flag of Heavy Fuel Commanded Evap Purge Purge Density Learn Value Evap Purge Flow ALT Duty Alternator control mode Battery Terminal Voltage Battery Charge/Discharge Current Estimated Battery Temperature Remaining Battery Capacity Fuel system for Bank 1 Fuel system for Bank 2 A/F Sensor #1 Resistance Rear O2 Sensor Input Voltage Rear O2 Sensor Offset Voltage O2 Sensor Impedance Load Value Cylinder Monitor #1 Cylinder Monitor #2 Cylinder Monitor #3 Cylinder Monitor #4 Completed Flag of Cylinder Discrimination Time Since Engine Start Initial Engine Oil Temp. Initial Engine Coolant Temp. Initial Intake Air Temp. Engine Starting Time Start Mask Control Check 1 Engine Startup Mode IG OFF Elapsed Time Meter since DTC cleared Time while MIL lighted Time since DTC cleared Number of warm-ups Lighted MI lamp history Maximum Engine Speed at the time of Misfire detection caused by out of Fuel Maximum Intake Air Amount at the time of Misfire detection caused by out of Fuel Number of Misfire detection caused by out of Fuel Estimated Total Mileage at the time of first Misfire detection caused by out of Fuel Status of Control to avoid Pre-Ignition caused by High Intake Air Temperature Status of Control to avoid Pre-Ignition caused by Continuous Knocking Pre-Ignition Control (Detection) Operating Status Estimated Total Mileage of Detection to avoid Pre-Ignition caused by High Intake Air Temperature Estimated Total Mileage of Detection to avoid Pre-Ignition caused by Continuous Knocking Estimated Total Mileage Since Pre-Ignition Control (Detection) Operating Number of Pre-Ignition Control (Prediction) Operating Number of Pre-Ignition Control (Detection) Operating Number of Pre-Ignition Control (Continuous Knock) Operation Number of Pre-Ignition Control (LSPI) Operation Cruise Control System Setting Condition Cruise Control System Request Torque Driver Request Torque Fuel Cut Elps Time Catalyst Temperature #11 Type of fuel AT drive status MT gear status Winch(PTO) Absolute Evap System Vapor Pressure Clutch Switch Clutch Start SW Stop Light Switch Idle Switch Signal Ignition Switch A/C Mid Pressure Switch A/C Compressor Signal Starter Switch Crankshaft Position Sig. Camshaft Position Sig. Immobilizer Fuel Cut Status AT turbine speed Manual Mode Lock up status Current Gear Position P/N Signal TCS Operating Condition Reverse SW Alternator control check 1 Alternator control check 2 Alternator control check 3 Alternator control check 4 Alternator control check 5 Alternator control check 6 Alternator control check 7 Alternator control check 8 Alternator control check 9 Alternator control check 10 Alternator Control Check 13 Alternator Control Check 15 Alternator Control Check 16 Alternator Control Check 17 Alternator Control Check 18 Alternator Control Check 19 Alternator Control Check 20 Alternator Control Check 21 Alternator Control Check 22 Alternator Control Check 23 Alternator Control Check 24 Alternator Control Check 25 Alternator Control Check 26 Alternator Control Check 27 Alternator Control Check 28 Alternator Mechanical Error Status Alternator Electrical Output Error Status Alternator High Temperature Error Status Alternator Communication Error Status Regulator Temperature Robust Check 1 Robust Check 2 Robust Check 3 Crush Detection Signal MIL Status Number of Diag. Code: Short term fuel trim #12 A/F Sensor #11 A/F Sensor #11 A/F Sensor #11 A/F Sensor #11 Absolute Throttle Pos.#2 Accelerator Pedal Pos.#1 Accelerator Pedal Pos.#2 Relative Accelera. Pos. Misfire monitoring(Supp) Misfire monitoring(Rdy) Fuel system monitoring(Supp) Fuel system monitoring(Rdy) Component monitoring(Supp) Component monitoring(Rdy) Catalyst Diagnosis(Supp) Catalyst Diagnosis(Rdy) Heated catalyst(Supp) Heated catalyst(Rdy) Evaporative purge system(Supp) Evaporative purge system(Rdy) Secondary air system(Supp) Secondary air system(Rdy) Oxygen sensor(Supp) Oxygen sensor(Rdy) O2 Heater Diagnosis(Supp) O2 Heater Diagnosis(Rdy) EGR system(Supp) EGR system(Rdy) Misfire monitoring(Enable) Misfire monitoring(Comp) Fuel system monitoring(Enable) Fuel system monitoring(Comp) Component monitoring(Enable) Component monitoring(Comp) Catalyst Diagnosis(Enable) Catalyst Diagnosis(Comp) Heated catalyst(Enable) Heated catalyst(Comp) Evaporative purge system(Enable) Evaporative purge system(Comp) Secondary air system(Enable) Secondary air system(Comp) Oxygen sensor(Enable) Oxygen sensor(Comp) O2 Heater Diagnosis(Enable) O2 Heater Diagnosis(Comp) EGR system(Enable) EGR system(Comp) OBD System Glow indicator light Actual Engine - Percent Torque Engine Reference Torque Engine Friction - Percent Torque Engine Fuel Rate Vehicle Fuel Rate Engine Exhaust Flow Rate GPF Temperature Estimation Mileage After GPF Warning Light Flashing GPF Regeneration Mode Cumulative Ash Amount 1 Cumulative Ash Amount 2 Accumulation Soot Amount 1 Accumulation Soot Amount 2 Accumulation Soot Amount 3 Exhaust Temperature Sensor(GPF Fr) Exhaust Temperature Sensor(GPF Rr) Deviation between GPF Inlet and Outlet Pressure GPF Pressure Loss Coefficient GPF Control Check Accumulation Integrated Soot Amount Combustion Integrated Soot Amount Exhaust Temperature Sensor(GPF Fr) Voltage Exhaust Temperature Sensor(GPF Fr) Reference Voltage Exhaust Temperature Sensor(GPF Rr) Voltage Exhaust Temperature Sensor(GPF Rr) Reference Voltage Deviation between GPF Inlet and Outlet Pressure Voltage Vehicle Odometer Reading Fuel System A Use Percentage (B1) Fuel System B Use Percentage (B1) FC TAU Stop torque decrease with AT Injection Volume (Cylinder1) Final Direct injection time (Cylinder 1) Final port injection time (Cylinder 1) Direct injection timing (Cylinder 1) Requested quantity of high-pressure fuel pump discharge (Pump 1) Target Fuel Pressure(High) Injection Mode(D4-S) A/F Learn Value Idle #1 A/F Learn Value Low #1 A/F Learn Value Mid1 #1 A/F Learn Value High #1 A/F Learn Value Idle #1(Dual) A/F Learn Value Low #1(Dual) A/F Learn Value Mid1 #1(Dual) A/F Learn Value High #1(Dual) Average Engine Speed of All Cylinder Engine Speed of Cylinder #1 Engine Speed of Cylinder #2 Engine Speed of Cylinder #3 Engine Speed of Cylinder #4 MIL Request Status Number of Operations Brake Override System Control Vehicle Odometer Reading at the time of detecting the Brake Override System IG counter at the time of detecting the Brake Override System
