Inspection [06/2023 - ]: Procedure
- INSPECT ECO RUN CANCEL SWITCH (PATTERN SELECT SWITCH)
- Measure the resistance according to the value(s) in the table below.

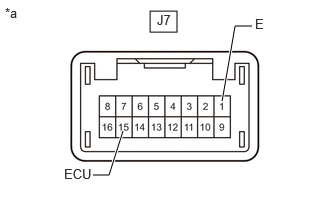

*a Component without harness connected
(Eco Run Cancel Switch (Pattern Select Switch))Standard Resistance
Tester Connection Switch Condition Specified Condition J7-15 (ECU) - J7-1 (E) Eco run cancel switch (pattern select switch) being pushed and held Below 50 Ω Eco run cancel switch (pattern select switch) not pushed 10 kΩ or higher If the result is not as specified, replace the eco run cancel switch (pattern select switch).
- Measure the resistance according to the value(s) in the table below.
